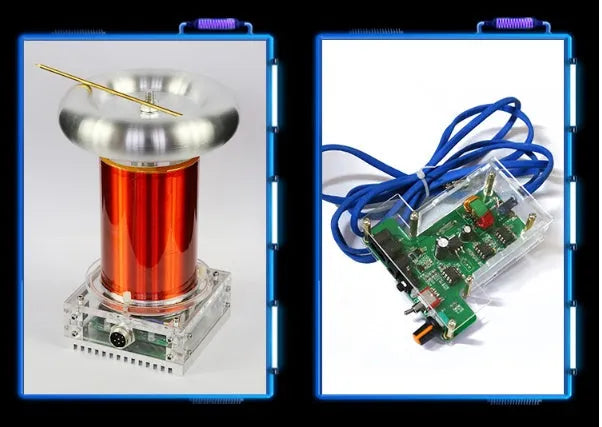

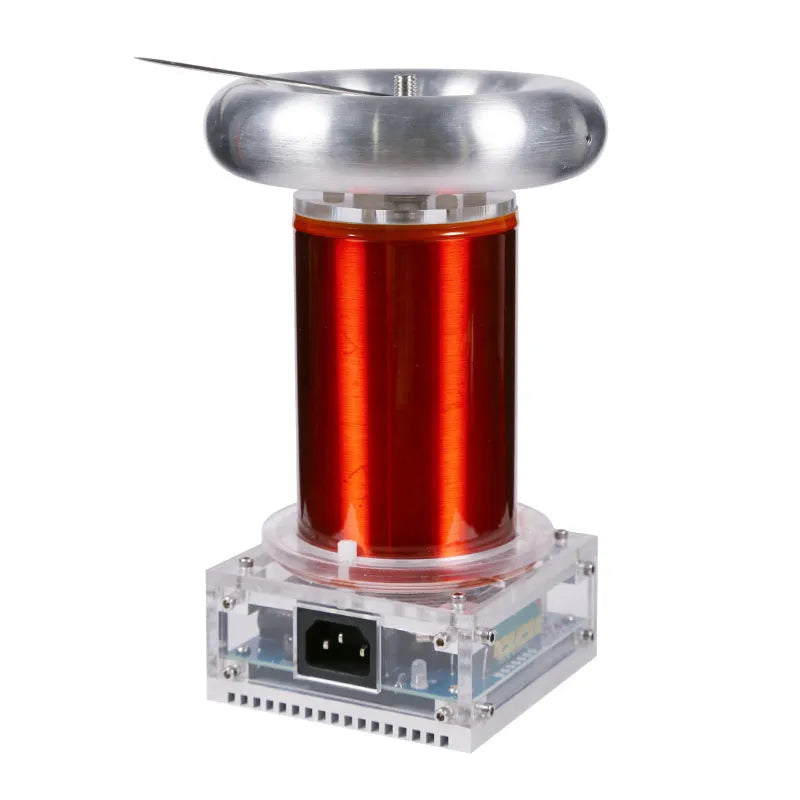

Tesla Coil Driver Board for Music Synchronised Lightning Effects with 20cm Arc Distance

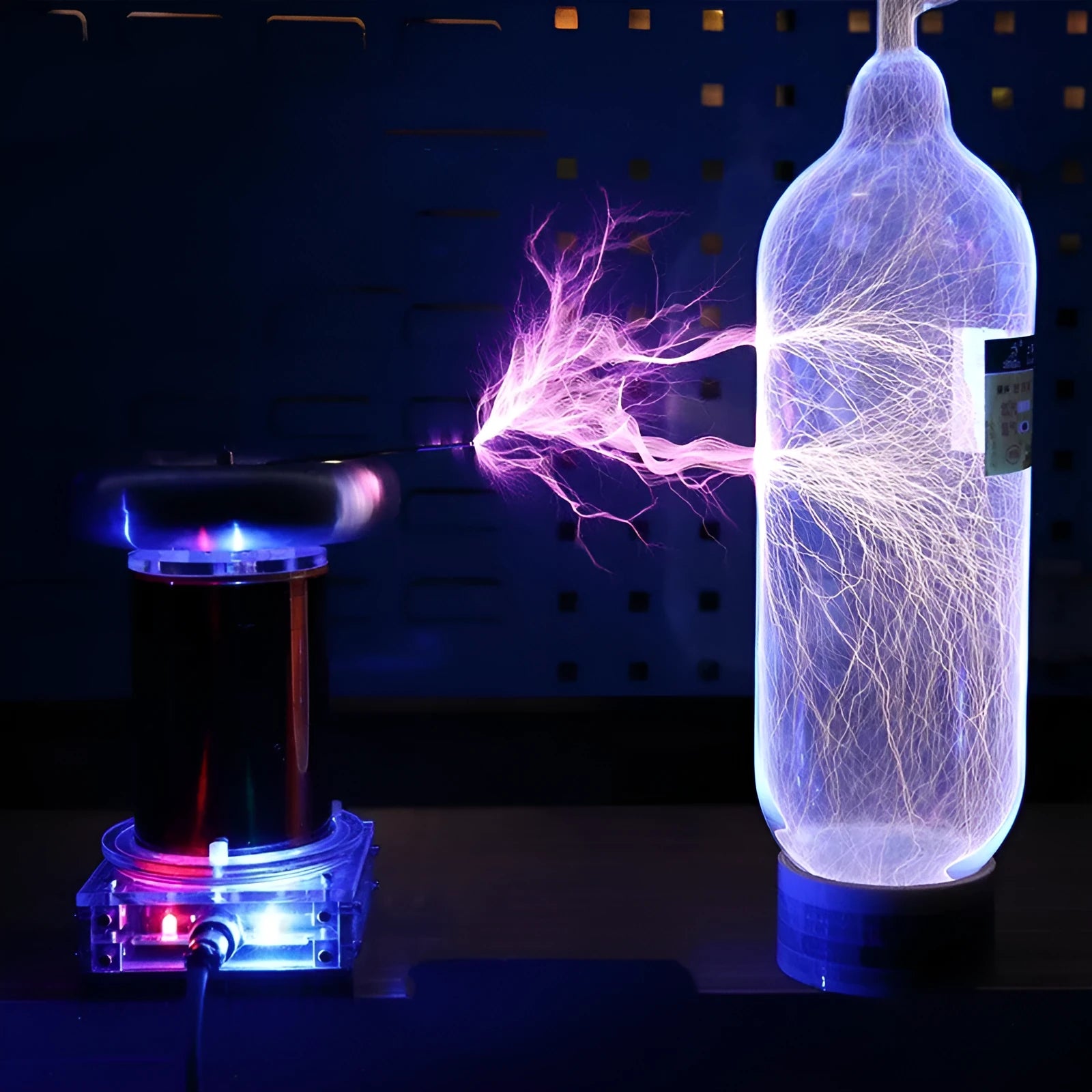

This Tesla coil driver board provides the core electronics for creating visually striking electrical arc displays that respond to audio input. Designed for educational demonstrations, science exhibits, or special effects applications, it transforms musical signals into dynamic lightning-like visualisations. The unit operates directly from standard 220V mains power without requiring additional power supplies or complex grounding setups. With its integrated arc extinguishing system and coaxial signal transmission, it offers a practical solution for generating controlled high-voltage discharges for both indoor and outdoor display purposes where safe electrical demonstration is required.

Features and Construction

The driver board incorporates several key technical features that enable reliable Tesla coil operation with reduced setup complexity compared to traditional high-voltage systems.

Material and Build

Constructed around a robust electronic circuit board with specialised components for high-voltage operation, the unit includes an arc extinguishing isolation device that interrupts discharge cycles for enhanced safety. The coaxial cable signal transmission ensures minimal interference with audio signals, while the overall structural design provides physical durability within its compact 100 x 115 x 205 mm footprint. The 1kg weight reflects a substantial build quality without excessive bulk, making the unit manageable for transport between demonstration locations.

Size and Practical Fit

Measuring exactly 100mm wide by 115mm deep by 205mm tall, the driver board occupies minimal space while delivering substantial electrical performance. The dimensions allow for convenient placement alongside associated equipment in demonstration setups. The 1kg weight provides stability during operation without being cumbersome to reposition. These physical characteristics make the unit suitable for both permanent installations and temporary demonstration arrangements where space considerations may apply.

Uses and Placement

This driver board serves multiple applications where controlled electrical discharge visualisation enhances educational or entertainment value.

Event or Professional Use

For scientific demonstrations, museum exhibits, or educational workshops, the board enables instructors to illustrate principles of electrical discharge and high-frequency alternating current. Event producers can incorporate the music-synchronised arcs into stage performances or visual displays, with the 20cm maximum arc distance creating visible effects at moderate scales. The 250W average power output supports consistent operation during demonstrations, while the direct 220V power connection simplifies venue setup compared to systems requiring specialised electrical infrastructure.

Everyday Home Use

While primarily designed for demonstration purposes, the board can be incorporated into home science projects or hobbyist displays with appropriate safety precautions. The 3.5mm audio input allows connection to common music players, enabling personalised visualisations synchronised with favourite tracks. The no-ground-wire requirement reduces installation complexity in typical domestic environments. However, users must maintain the specified 0.5-1m safety distance and follow all operational guidelines to ensure safe home use.

Benefits and Buying Value

The driver board offers several practical advantages for users seeking reliable Tesla coil operation without extensive electrical expertise.

Reuse and Low Maintenance

The solid-state construction and arc extinguishing system support repeated use with minimal performance degradation. The coaxial transmission maintains signal integrity over extended periods, while the direct 220V power connection eliminates the need for multiple intermediate power converters that might require separate maintenance. With no moving parts except the control potentiometer, the system maintains operational readiness between uses with basic care and proper storage.

Why Choose This Product

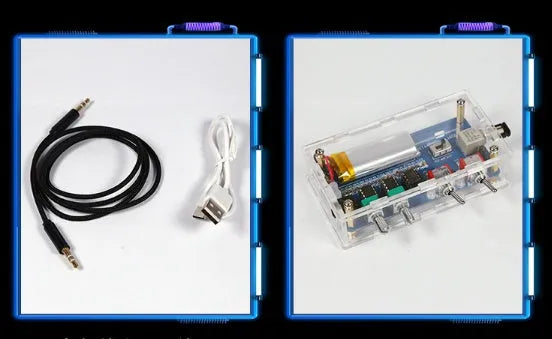

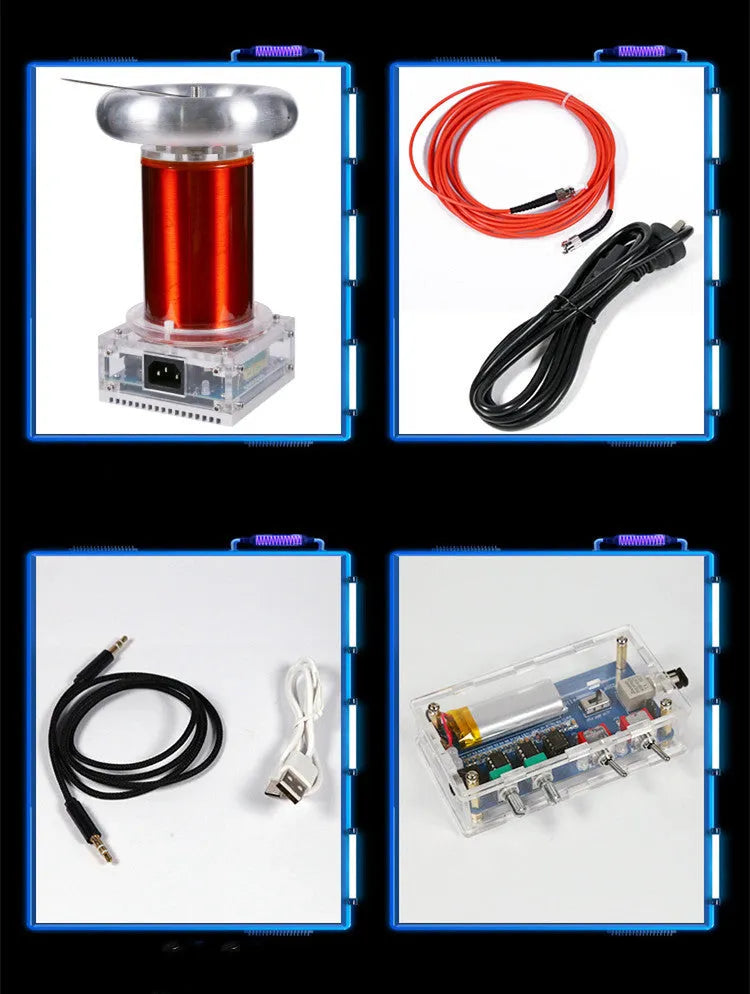

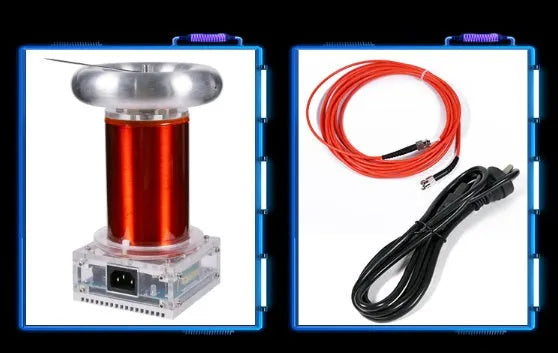

This driver board provides a complete Tesla coil control solution with integrated safety features and simplified power requirements. The 20cm adjustable arc distance offers flexibility for different display scales, while the music synchronisation capability adds an engaging interactive dimension. The inclusion of all necessary cables and controller in the package enables immediate setup without additional component sourcing. For users seeking a balanced combination of visual impact, operational simplicity, and built-in safety measures, this unit represents a practical entry point into high-voltage electrical demonstration.
