TB6560 3A Stepper Motor Driver: Precision Control for CNC and Pick & Place Machines

This TB6560-based stepper motor driver module delivers a dependable and tested solution for controlling two-phase, four-phase, four-wire, and six-wire stepper motors in applications such as engraving machines and pick & place equipment. It centres on the Toshiba TB6560AHQ integrated circuit, which incorporates key protection features including low-voltage shutdown, over-temperature shutdown, and over-current protection to safeguard operations. Designed for motors within the 42 and 57 step sizes and a maximum current rating of 3A, it offers a versatile control range with a working voltage from DC 10V to 35V. Its compact form factor, measuring 50 mm by 75 mm by 35 mm, makes it suitable for integration into various project enclosures. Users should note the critical point that the module itself does not include additional protection circuitry; therefore, careful attention during installation and use is paramount to prevent damage to the chip, which would void the warranty.

Features and Construction

The TB6560 driver is built for performance and practical application in small-scale automation. Its design prioritises core functionality necessary for precise motor control in DIY CNC and light industrial settings.

Material and Build

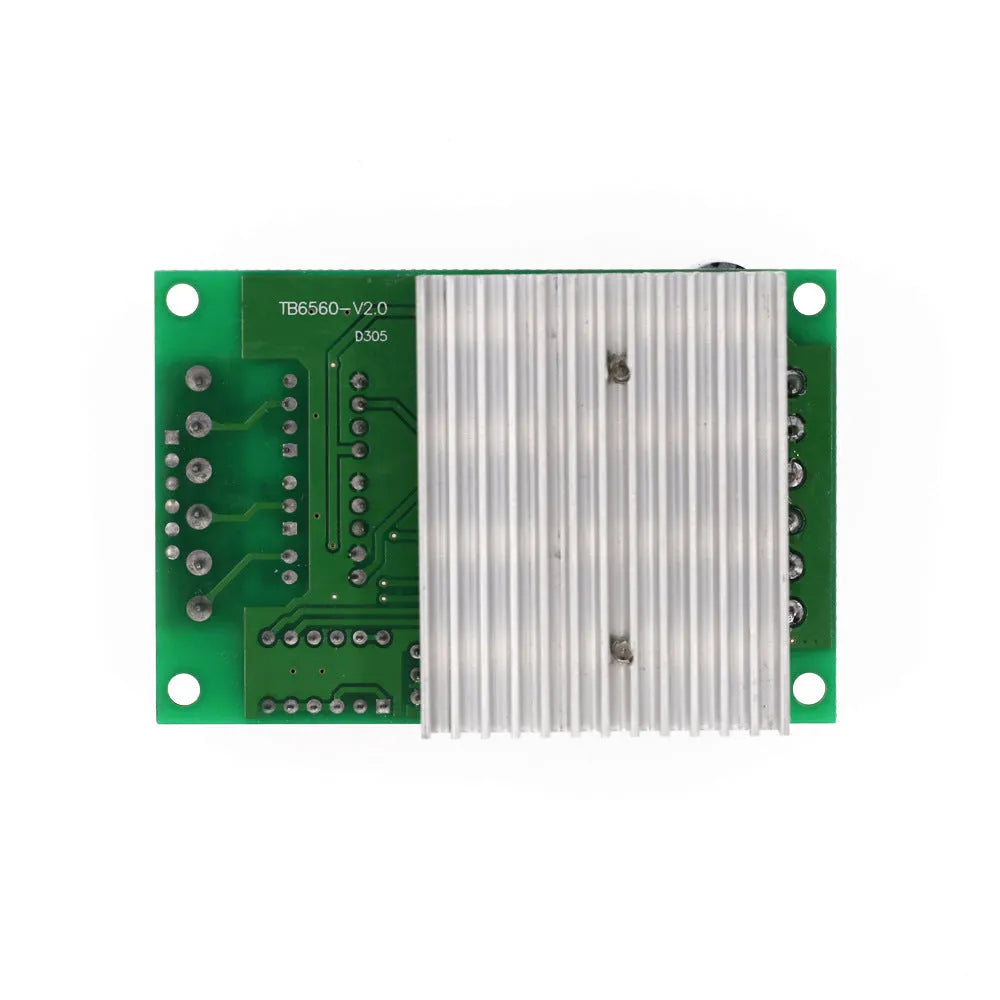

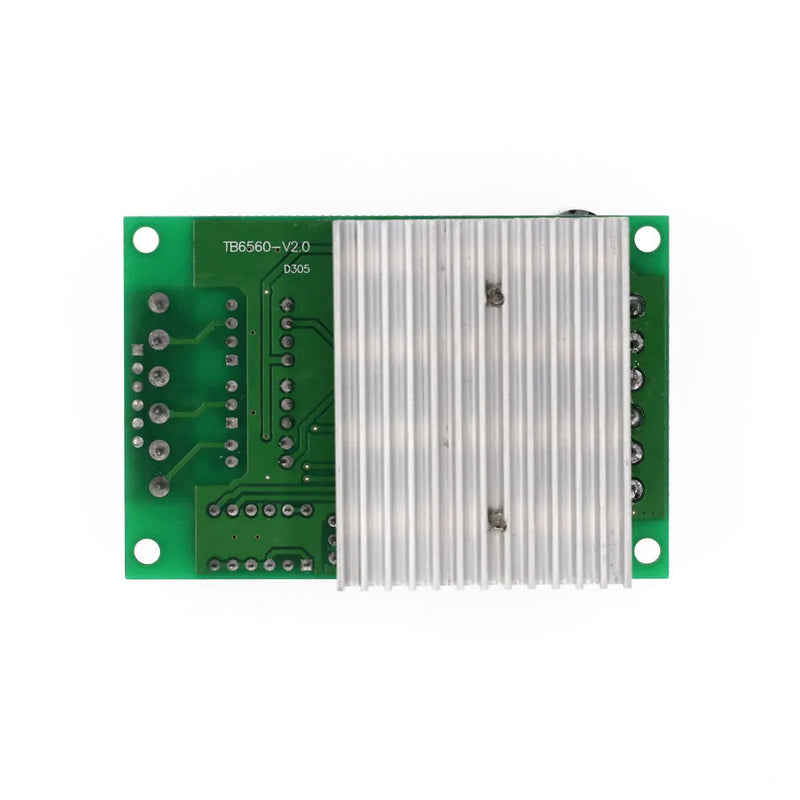

The module is constructed on a standard printed circuit board populated with key components. At its heart is the Toshiba TB6560AHQ motor driver IC, chosen for its integrated safety circuits. Signal isolation is handled by a 6N137 high-speed optocoupler, which helps maintain signal integrity and prevent step loss during high-speed operation. A notable physical component is the attached heatsink, which aids in dissipating thermal energy generated by the driver chip during use, contributing to sustained performance.

Size and Practical Fit

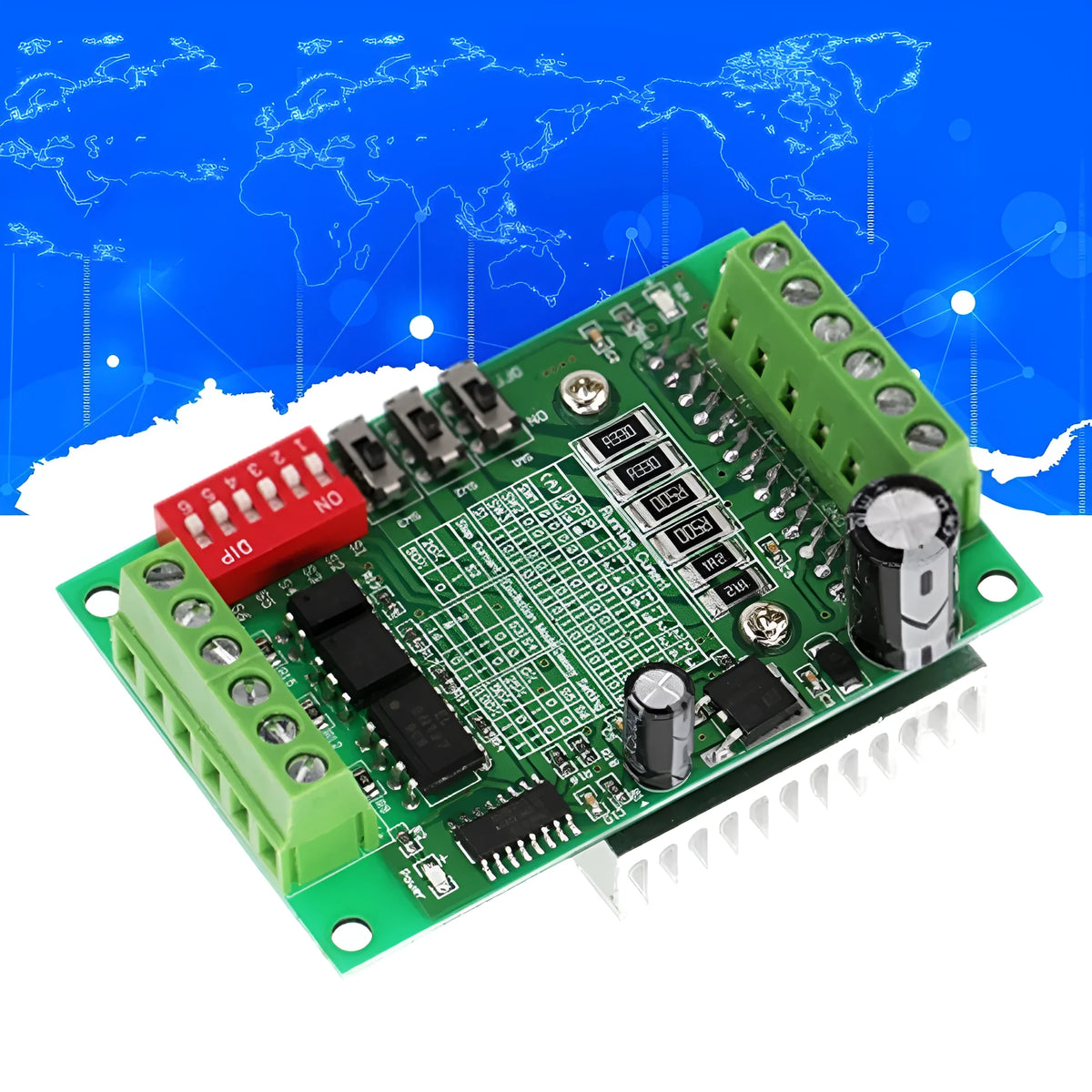

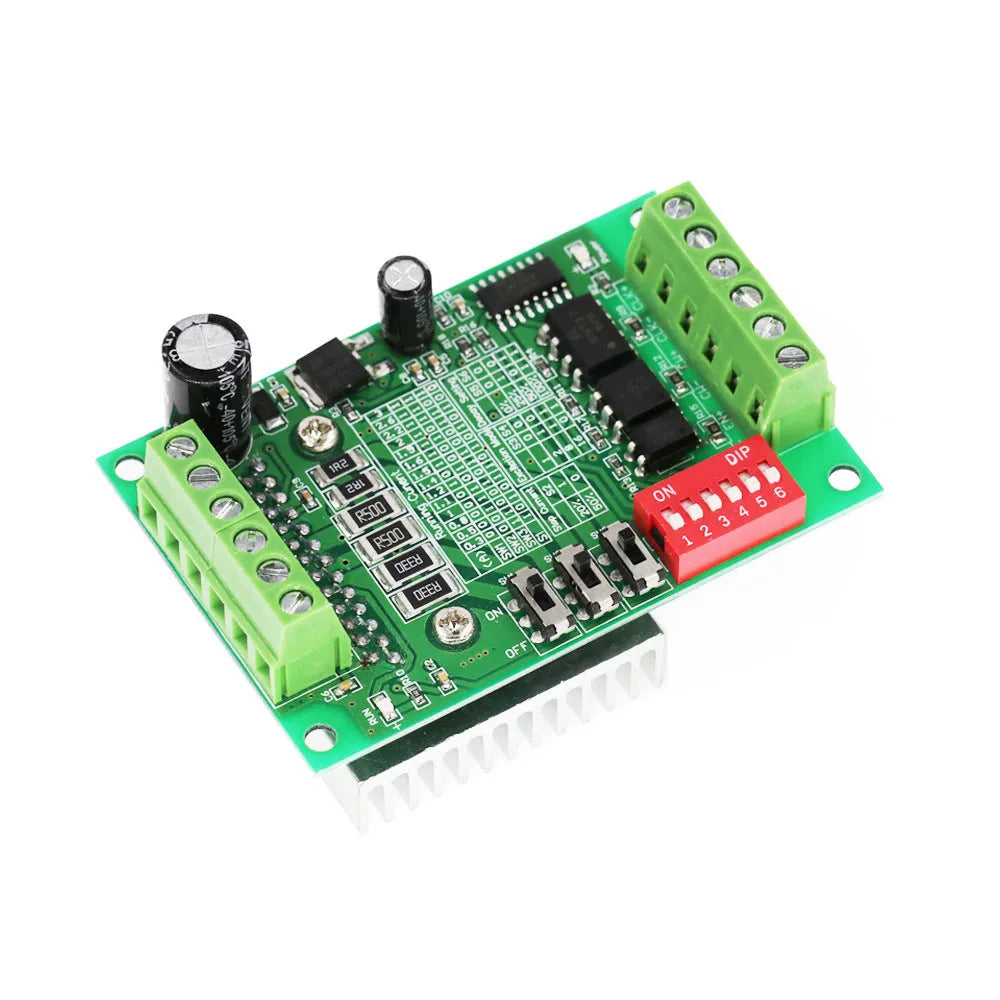

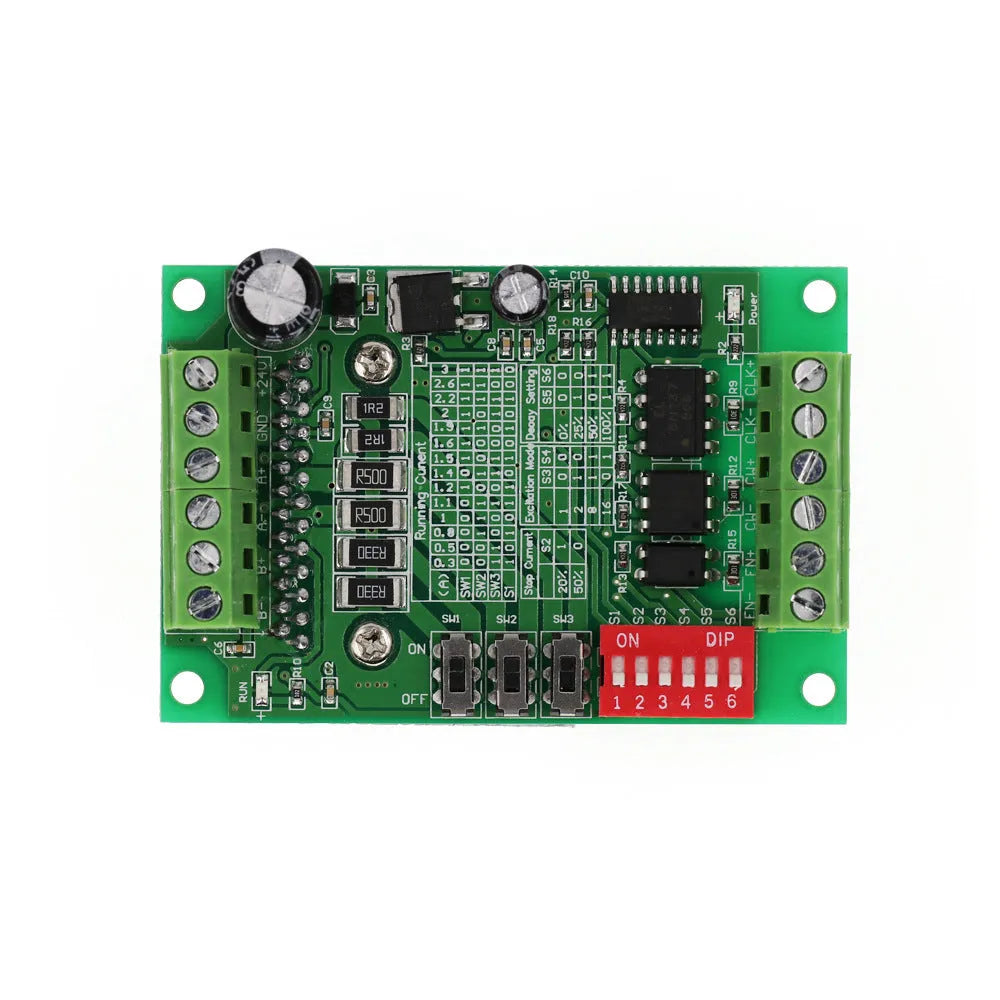

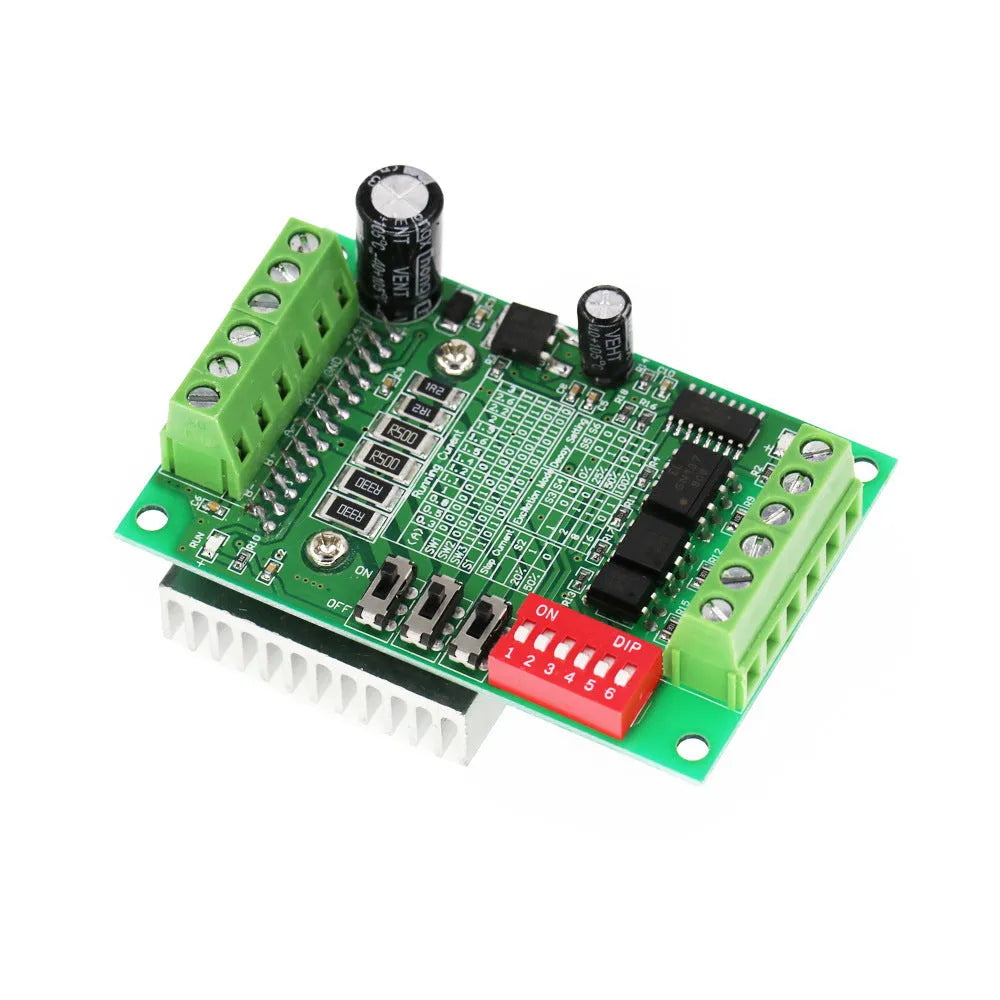

With dimensions of 50 mm in width, 75 mm in length, and 35 mm in height, this driver presents a compact footprint. This size allows it to be mounted conveniently within control boxes or on machinery frames where space may be limited. The board also includes printed setting instructions directly on its surface, allowing for configuration without needing to consult a separate manual, which is a practical touch for quick setup and adjustments.

Uses and Placement

This driver is suited for specific motor types and applications where controlled, precise movement is required. Its specifications define clear boundaries for its effective use.

Event or Professional Use

In professional or semi-professional contexts like small-batch manufacturing or prototype development, this driver is applied in CNC engraving machines for creating detailed patterns on materials, and in pick & place machines for automated assembly. Its ability to handle motors up to 3A and offer up to 16 microstep subdivisions allows for smooth and accurate positioning, which is crucial in these repetitive, precision-oriented tasks.

Everyday Home Use

For hobbyists and makers in a home workshop environment, this module is a core component for DIY CNC routers, 3D printer upgrades, or automated plotter projects. Its support for common 42 and 57 frame stepper motors makes it compatible with a wide range of kits and self-built machines. The automatic half-flow function is particularly beneficial here, as it reduces motor and driver heating during idle periods, which is common in intermittent home use.

Benefits and Buying Value

The value of this driver lies in its tested application, specific feature set, and the practical efficiencies it offers for motor control projects.

Reuse and Low Maintenance

The driver's construction around a robust IC with protection features contributes to its potential for reuse across projects. The automatic half-flow function minimises power draw and heat when the motor is not actively stepping, which can prolong the life of both the driver and the connected motor. The clearly printed board settings facilitate easy reconfiguration if the module is moved to a different machine or motor.

Why Choose This Product

Choosing this specific TB6560 driver provides a balance of capability and simplicity for motors within its 3A rating. Its key differentiators are the use of the Toshiba TB6560AHQ chip with its built-in protections, the inclusion of the 6N137 optocoupler for reliable high-speed signalling, and the practical onboard printing for setup. It offers a focused solution for users who need a driver for common stepper motors in engraving, positioning, or automation tasks, without the complexity and cost of oversized industrial controllers. The explicit specification of its limits—such as not being suitable for motors over 3A—also allows for informed purchasing decisions.
