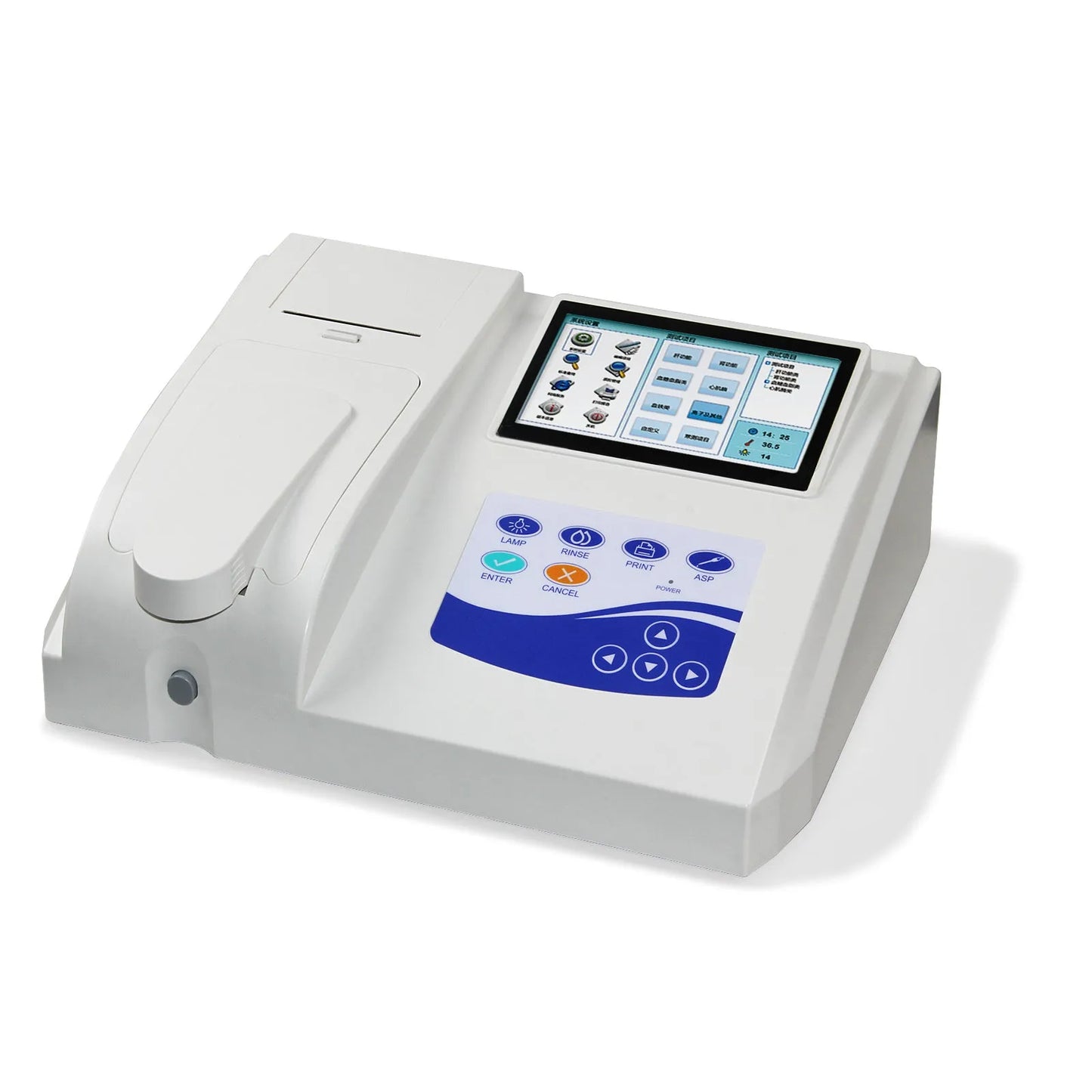

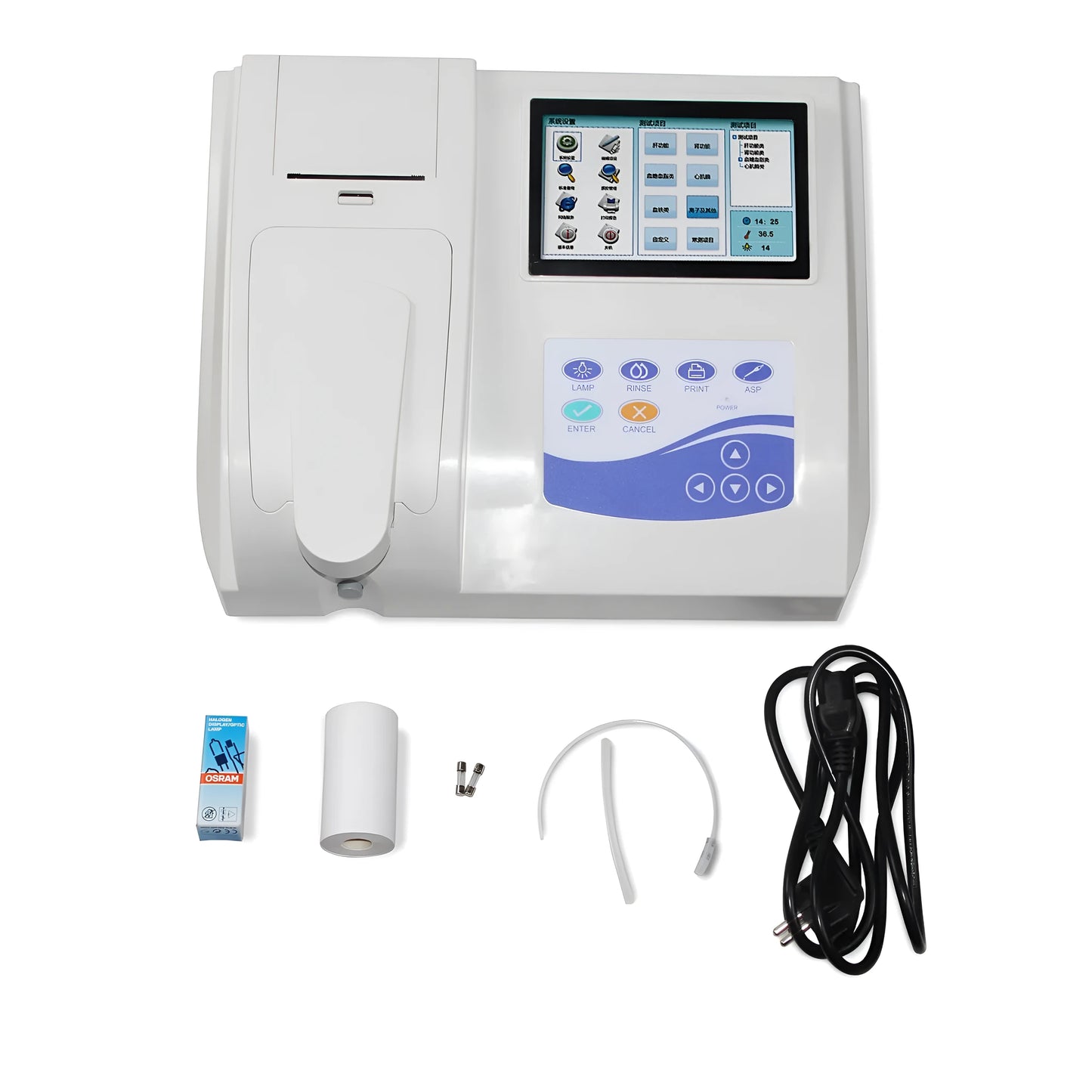

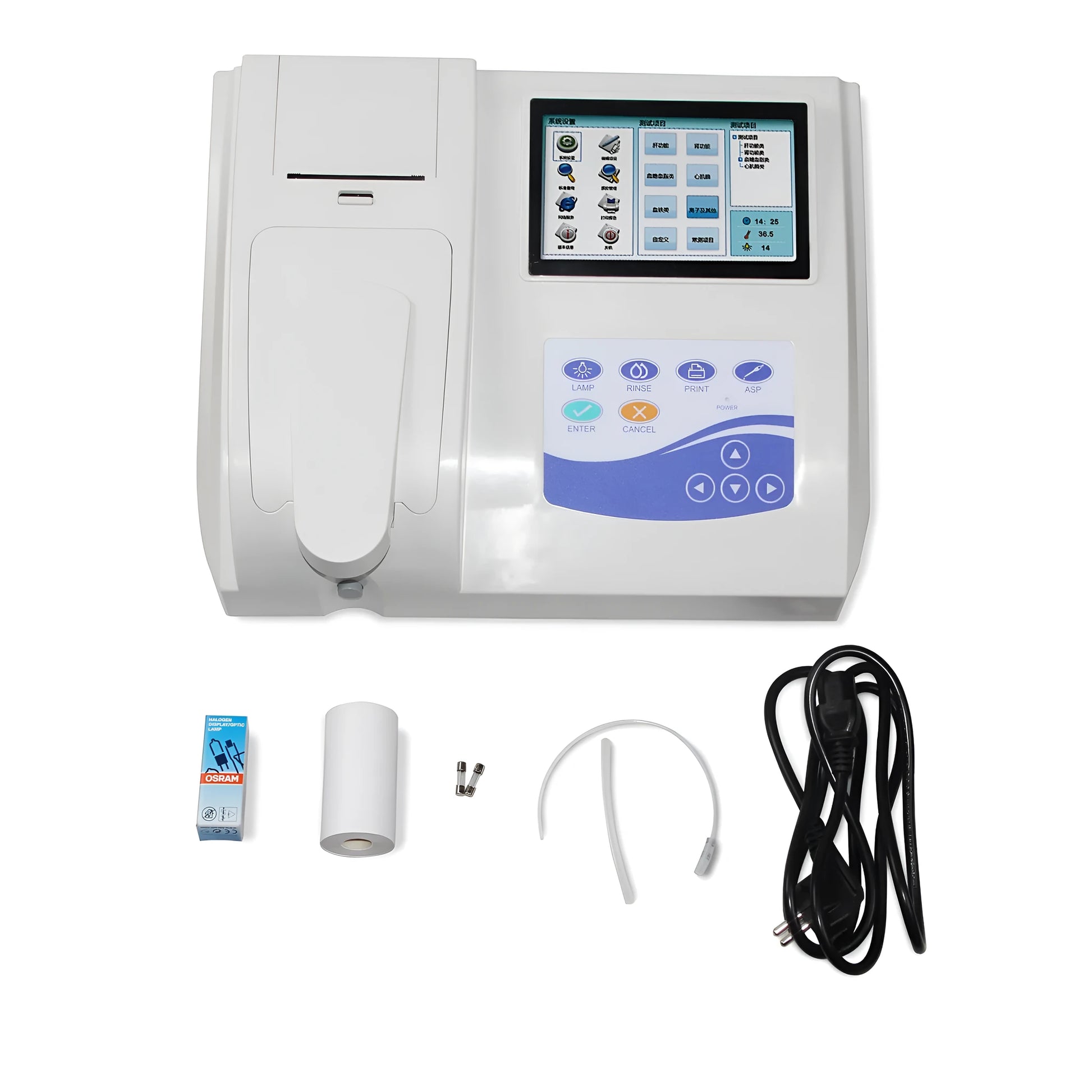

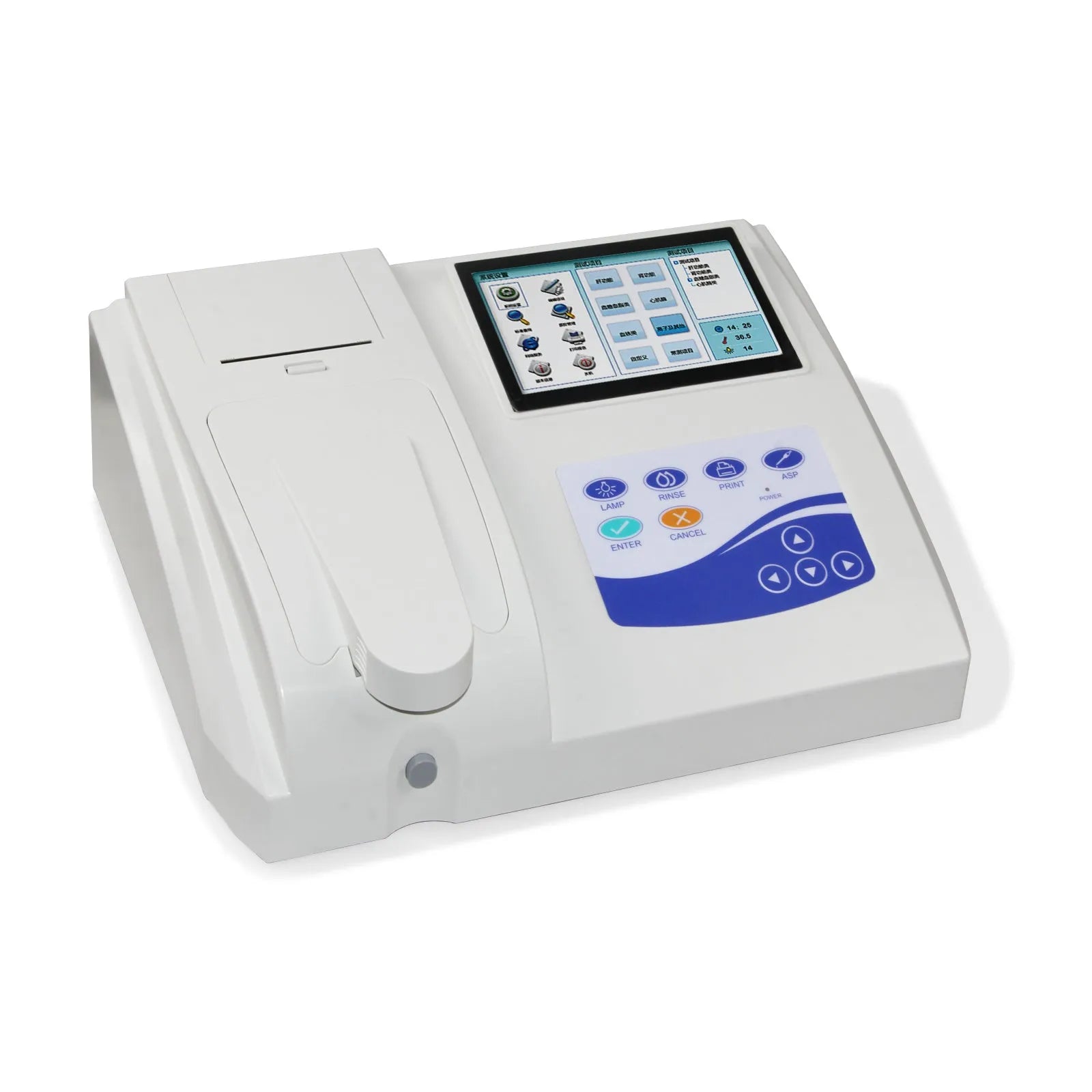

CONTEC BC300 semi-auto biochemistry analyser with touch screen and multi-parameter testing capability

The CONTEC BC300 represents a practical laboratory solution for clinical settings requiring consistent biochemical analysis without full automation. This semi-auto biochemistry analyser measures essential indexes from blood and other body fluids, combining these results with other clinical information to support disease diagnosis, organ function evaluation, and therapeutic norm determination. With its 7-inch colour touch screen interface and comprehensive storage for 500 test items and 10,000 results, the device balances accessibility with substantive data management capabilities suitable for smaller laboratories or specialised testing environments.

Features and Construction

The BC300 incorporates multiple technical features designed for reliable operation in clinical diagnostic settings. From its optical system to data management capabilities, each component serves a specific practical function supported by measurable specifications.

Material and Build

Constructed around a quartz flow cell with 30µl capacity, the analyser utilises a halogen lamp light source that operates across six preset wavelengths (340, 405, 510, 546, 578, 620nm) plus two customisable positions. This optical configuration supports an absorbency range of -0.3 to 3.0Abs with 0.001Abs display resolution and 0.0001Abs internal calculation precision. The embedded high-speed processor runs a Linux operating system, providing stability for the colour graphical interface while managing the device's multiple measurement and calculation methodologies.

Size and Practical Fit

With dimensions of 410mm length by 340mm width by 150mm height and a weight of 6kg, the BC300 occupies moderate bench space while remaining transportable between laboratory areas. The device accommodates sample volumes from 0-6000µl while maintaining ≤1.0% cross contamination between tests. Operating requirements specify 10-30°C temperature environments with ≤80% relative humidity and 860-1060hPa atmospheric pressure, making it suitable for standard laboratory conditions without specialised climate control.

Uses and Placement

This analyser serves diagnostic applications where biochemical measurements inform clinical decisions and patient management strategies. Its semi-automated approach provides flexibility for laboratories processing moderate sample volumes without requiring fully automated systems.

Event or Professional Use

In clinical laboratory settings, the BC300 supports disease diagnosis through biochemical index analysis from blood and body fluids. The device's multiple measurement methods (end point, two-point, kinetics, double wavelength) and calculation methodologies (factor, linear regression, nonlinear regression) allow adaptation to various testing protocols. Quality control features include dual batch number settings with automatic statistics, QC chart generation, and one-year data storage, supporting compliance with laboratory accreditation requirements.

Everyday Home Use

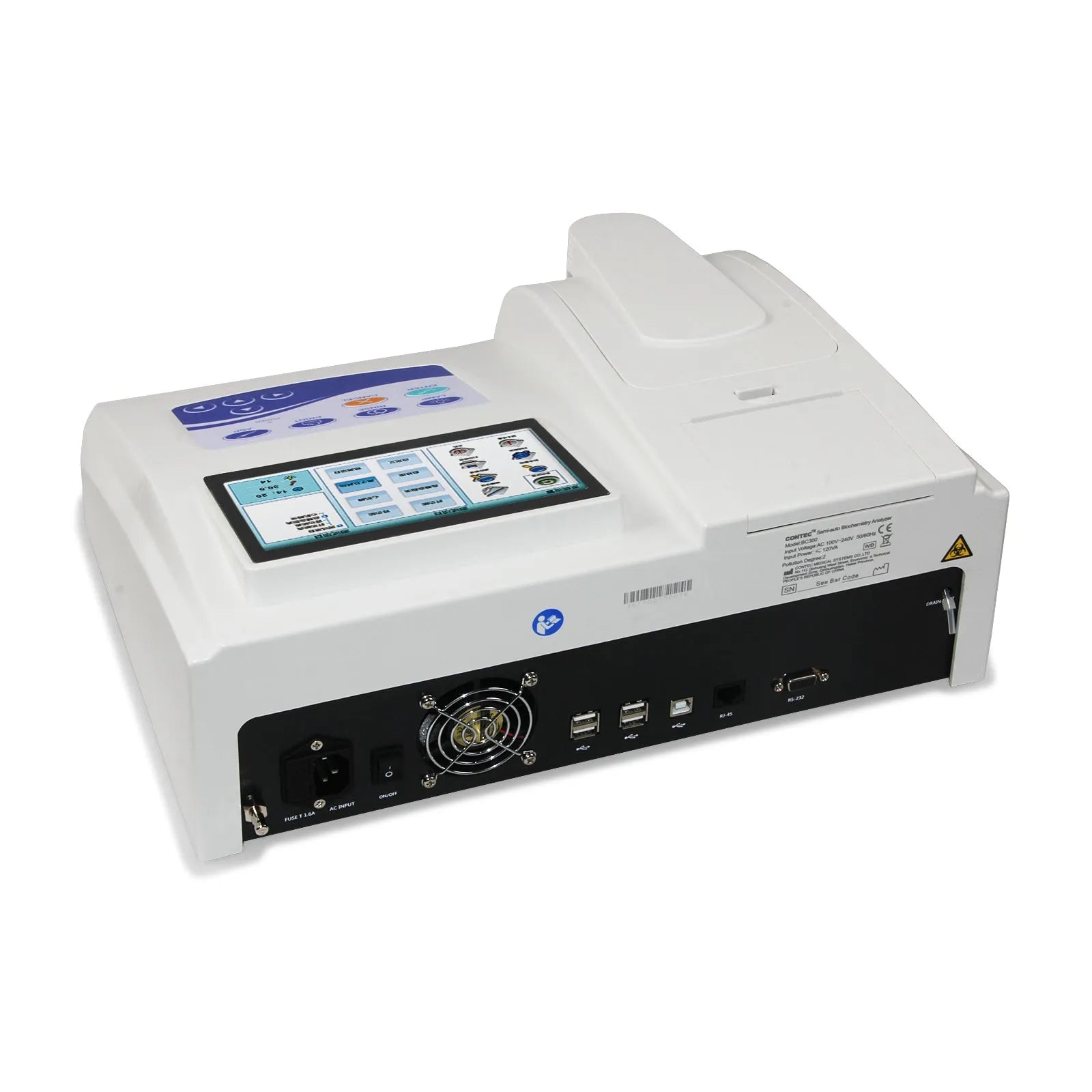

The BC300 is designed for professional laboratory environments rather than home use, requiring controlled conditions of 10-30°C temperature and ≤80% humidity. Its multiple interface options—including four USB ports, Ethernet, and RS232 connectivity—facilitate integration with laboratory information systems. The built-in thermal printer provides immediate results, while data transmission capabilities support centralised record-keeping and analysis in clinical settings.

Benefits and Buying Value

This analyser offers practical advantages for laboratories seeking reliable biochemical measurement without the complexity of fully automated systems. Its combination of precise optical specifications and comprehensive data management addresses common clinical testing requirements.

Reuse and Low Maintenance

The device incorporates several features designed to support sustained operation, including auto-dormancy for the halogen lamp to prolong its operational life and power-off protection that automatically saves measurement results. Self-check functions monitor light path, liquid path, and mechanical components, alerting operators to potential issues before they affect test accuracy. Standard communication interfaces facilitate data backup and transfer, reducing the risk of data loss during routine operation.

Why Choose This Product

The CONTEC BC300 provides a balanced combination of measurement precision and operational accessibility at a semi-automated level. Its 0.001Abs resolution, ±0.1°C temperature accuracy, and ≤1.0% cross contamination specification support reliable diagnostic results. Multi-language interface support (Chinese, English, Spanish, Portuguese) accommodates diverse operating environments, while the 500-test item and 10,000-result storage capacity ensures adequate data retention for typical clinical workflows without external database dependency.
