SMG-WF01 7-32V WiFi Relay Module: Secure Self-Locking Remote Control for Smart Home Automation

This SMG-WF01 series relay module delivers a specialised self-locking interlock function for remote control applications, designed for integration into smart home automation systems. Operating on the 2.4GHz WiFi frequency band, the module enables wireless control of electrical devices through a USB communication interface. With a broad 7-32V operating voltage specification, it accommodates various power supply configurations commonly found in residential and light commercial environments. The compact form factor and onboard PCB antenna create a practical solution for implementing remote switching capabilities without complex installation requirements.

Features and Construction

The SMG-WF01-7-32V relay module incorporates several technical specifications that define its operational capabilities. The design prioritises functionality within a constrained physical footprint while maintaining reliable wireless connectivity. Construction elements focus on practical implementation within control systems rather than aesthetic considerations.

Material and Build

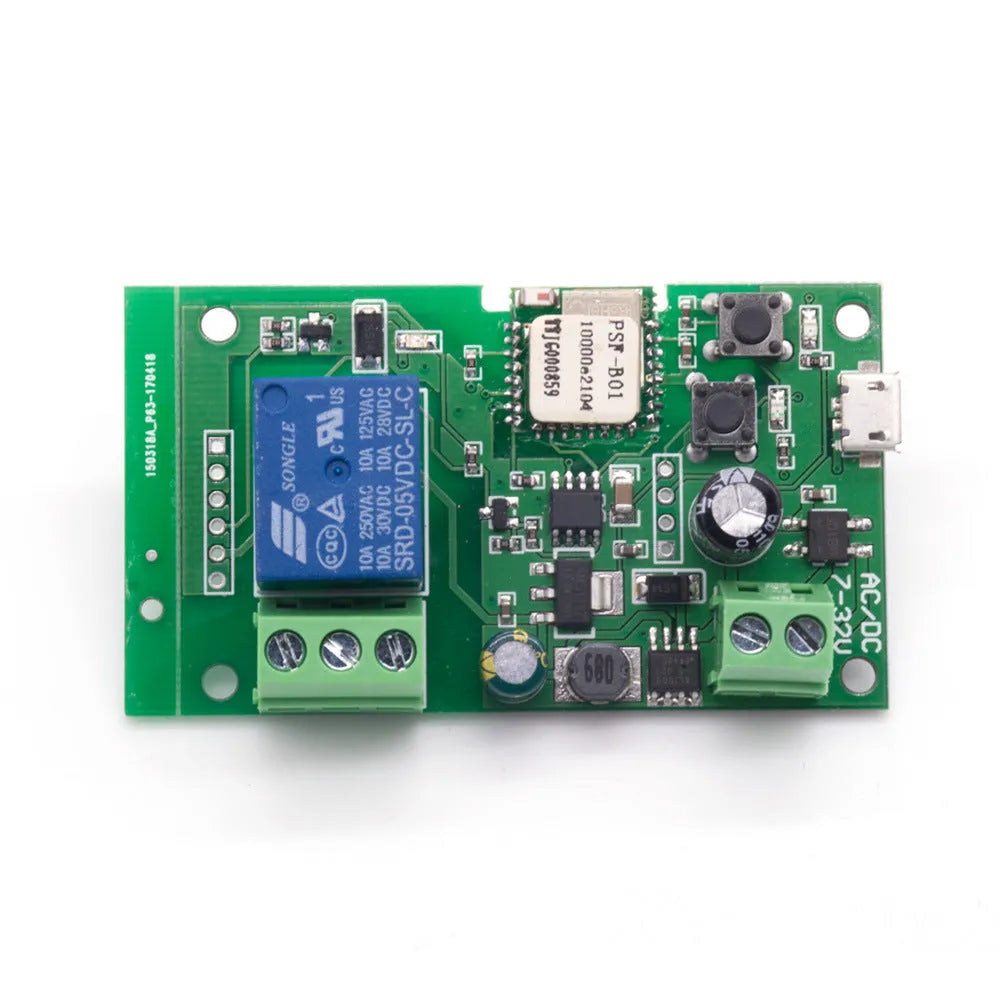

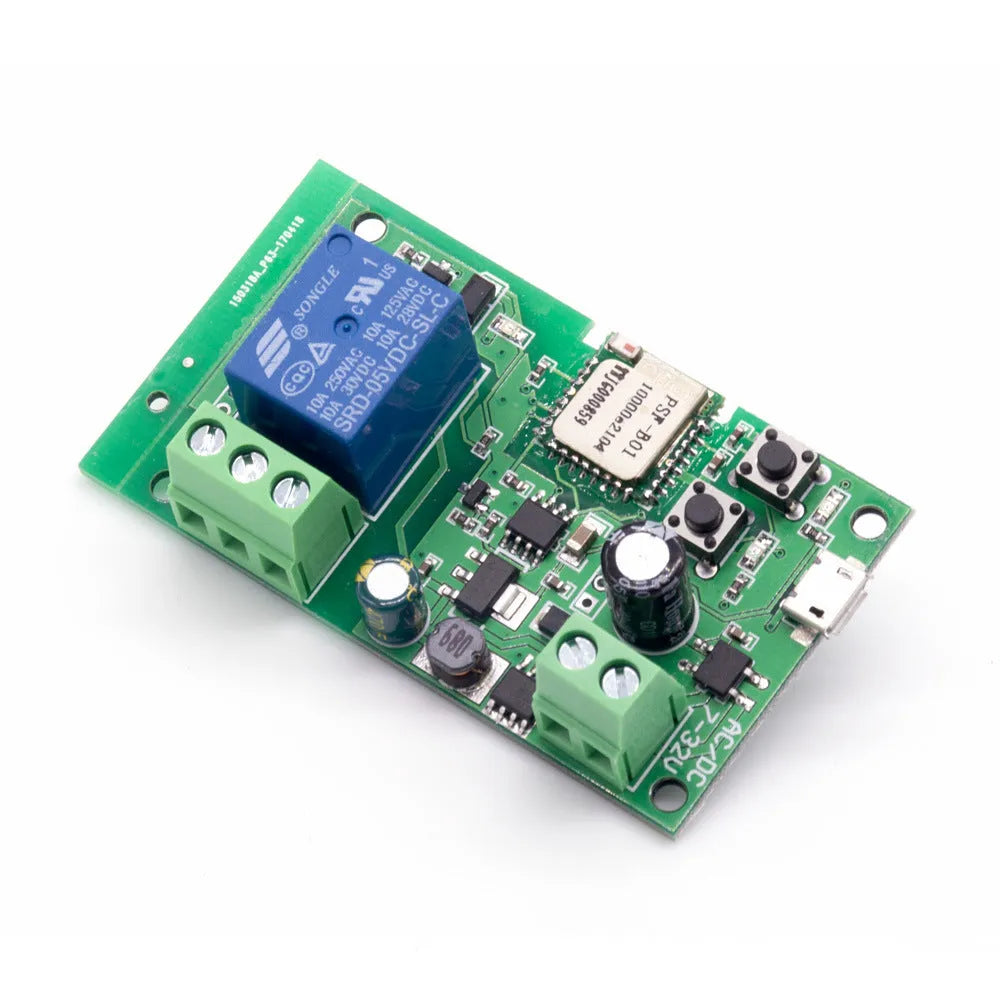

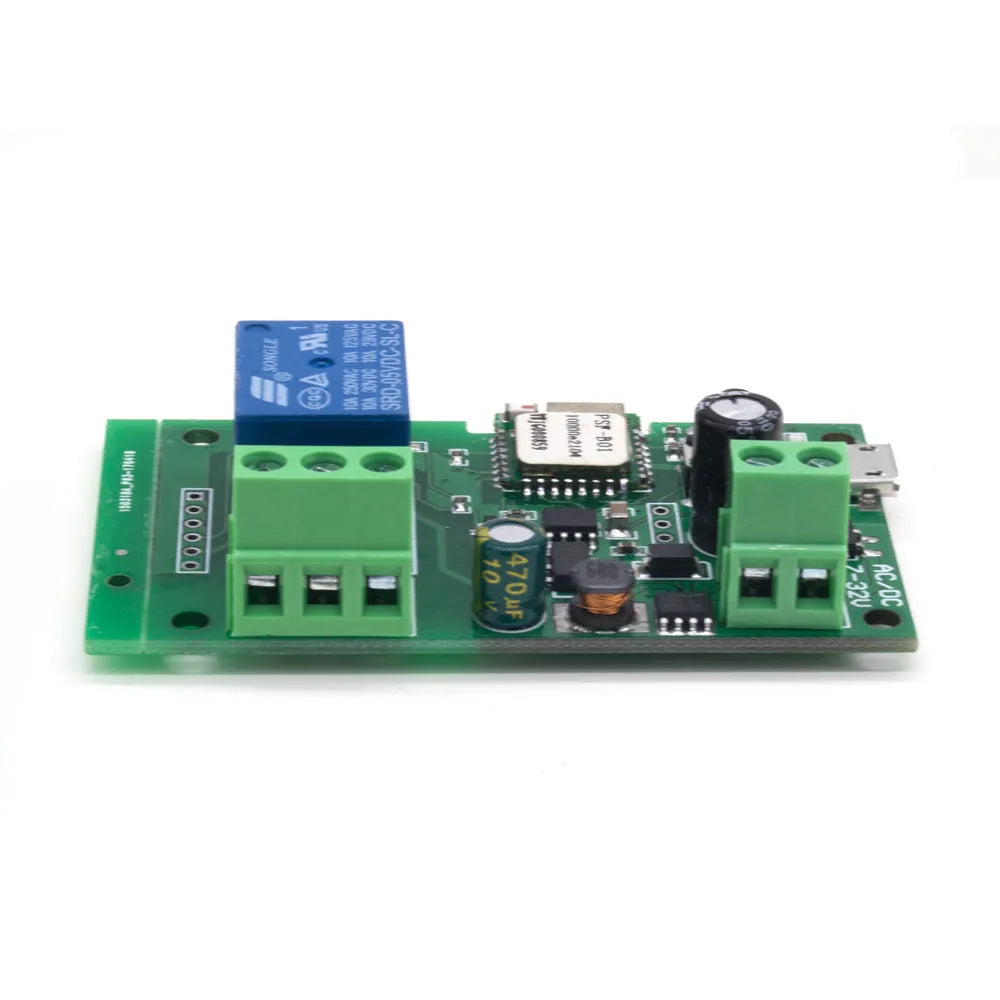

The module utilises PCB (Printed Circuit Board) construction to house electronic components, with the wireless antenna integrated directly onto the circuit board as a PCB onboard antenna. This integrated approach eliminates external antenna requirements and contributes to the compact 15cm × 8cm × 2cm dimensions. The build quality aligns with standard electronic module manufacturing practices for control applications.

Size and Practical Fit

With measurements of 15cm in length, 8cm in width, and 2cm in height, the module occupies minimal space within installation environments. The 0.1kg weight further enhances mounting flexibility, allowing placement in various orientations without structural concerns. These physical characteristics make the unit suitable for integration into existing electrical enclosures or behind control panels where space is often limited.

Uses and Placement

The relay module serves as a control interface between wireless networks and electrical devices, enabling remote operation of connected equipment. Its functionality applies to scenarios where distance or accessibility makes direct manual control impractical. The specific implementation depends on the broader system architecture and control requirements.

Event or Professional Use

In professional environments, the module could facilitate scheduled operation of lighting systems, signage, or display elements based on time-based or condition-based triggers. The self-locking interlock function ensures maintained state without continuous signal requirements, which proves valuable in control sequences where position retention matters. Integration with existing building management systems becomes possible through the USB communication interface.

Everyday Home Use

For residential applications, the module enables remote control of indoor or outdoor lighting, heating elements, or security devices via smartphone or computer interfaces. The 2.4GHz WiFi connectivity works with standard home networks, eliminating proprietary hub requirements. Home automation scenarios might include scheduled garden lighting, remote appliance activation, or integration with voice assistant ecosystems when configured appropriately.

Benefits and Buying Value

The relay module provides specific technical advantages within its application domain, focusing on reliable switching functionality rather than aesthetic appeal. Value derives from its combination of wireless connectivity, voltage compatibility, and specialised control features within a single integrated unit.

Reuse and Low Maintenance

The solid-state design with minimal moving parts suggests potential for extended operational periods without mechanical wear concerns typical of electromechanical relays. The absence of external antenna components reduces physical vulnerability during installation and use. Should control requirements change, the module's standard interfaces facilitate reconfiguration for different applications within its technical specifications.

Why Choose This Product

This module offers a combination of self-locking interlock functionality with 2.4GHz WiFi connectivity and broad voltage compatibility, addressing specific control requirements within automation systems. The USB interface provides a standardised connection method compatible with various control platforms. For applications requiring secure state retention alongside wireless control capabilities, this module delivers integrated functionality without requiring multiple discrete components.
