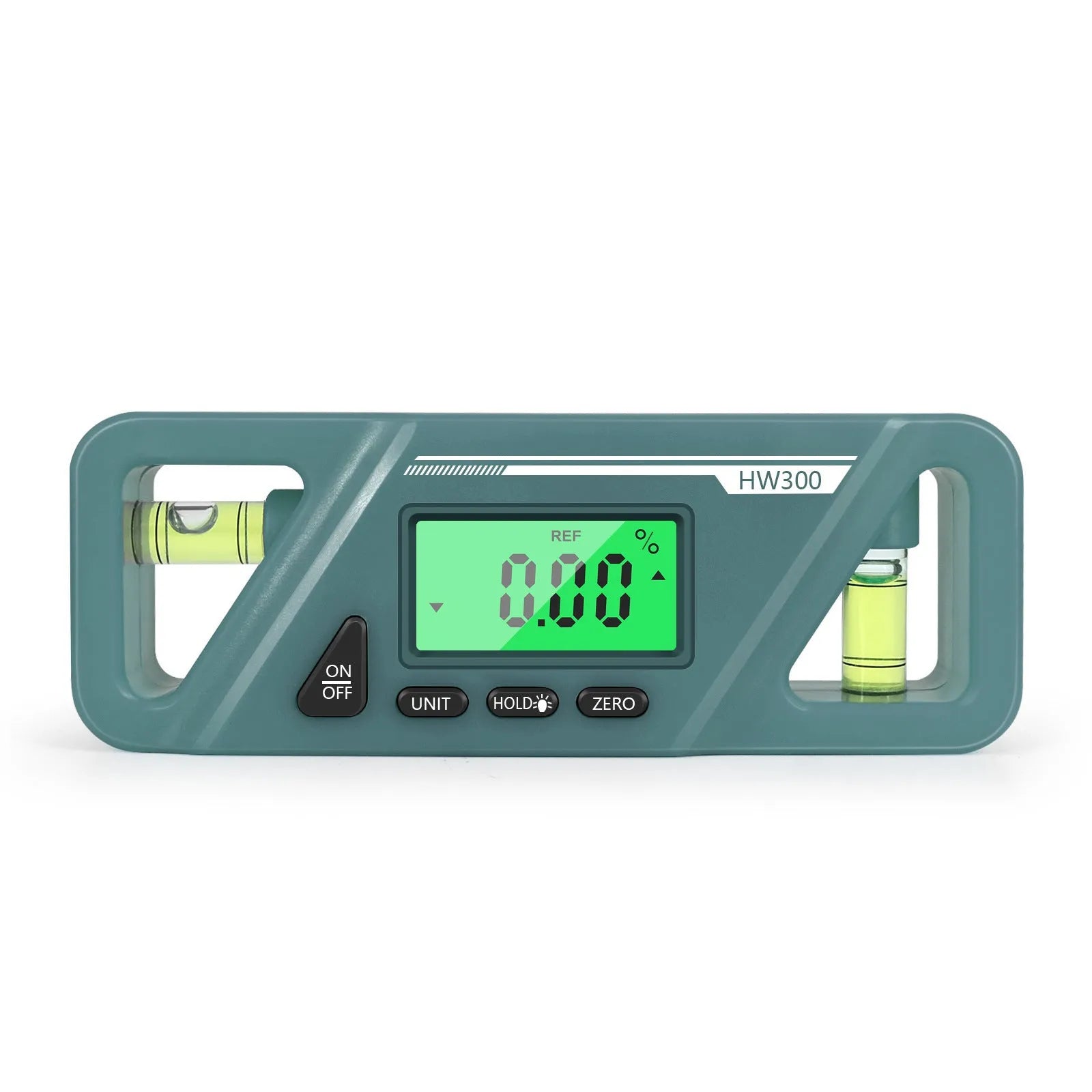

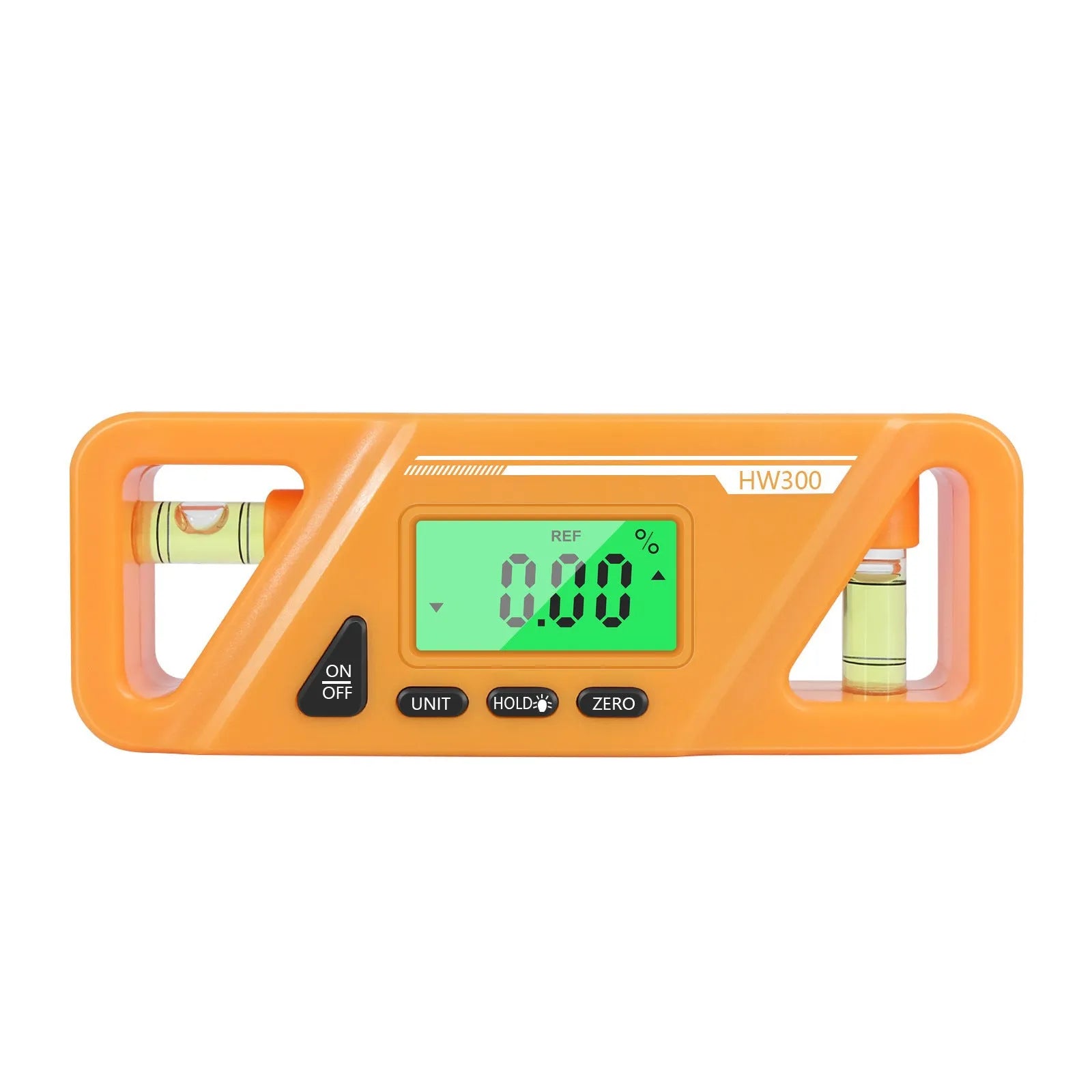

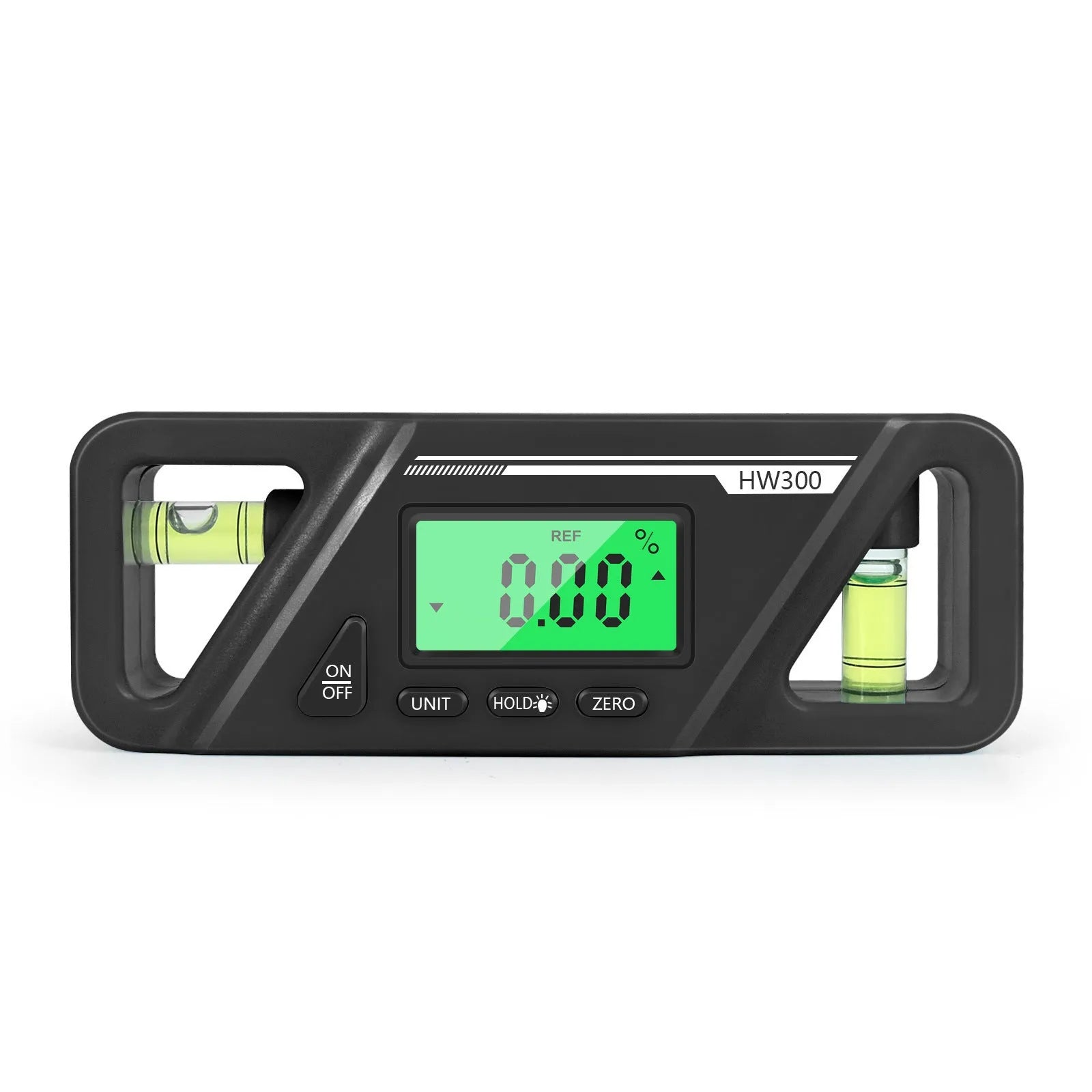

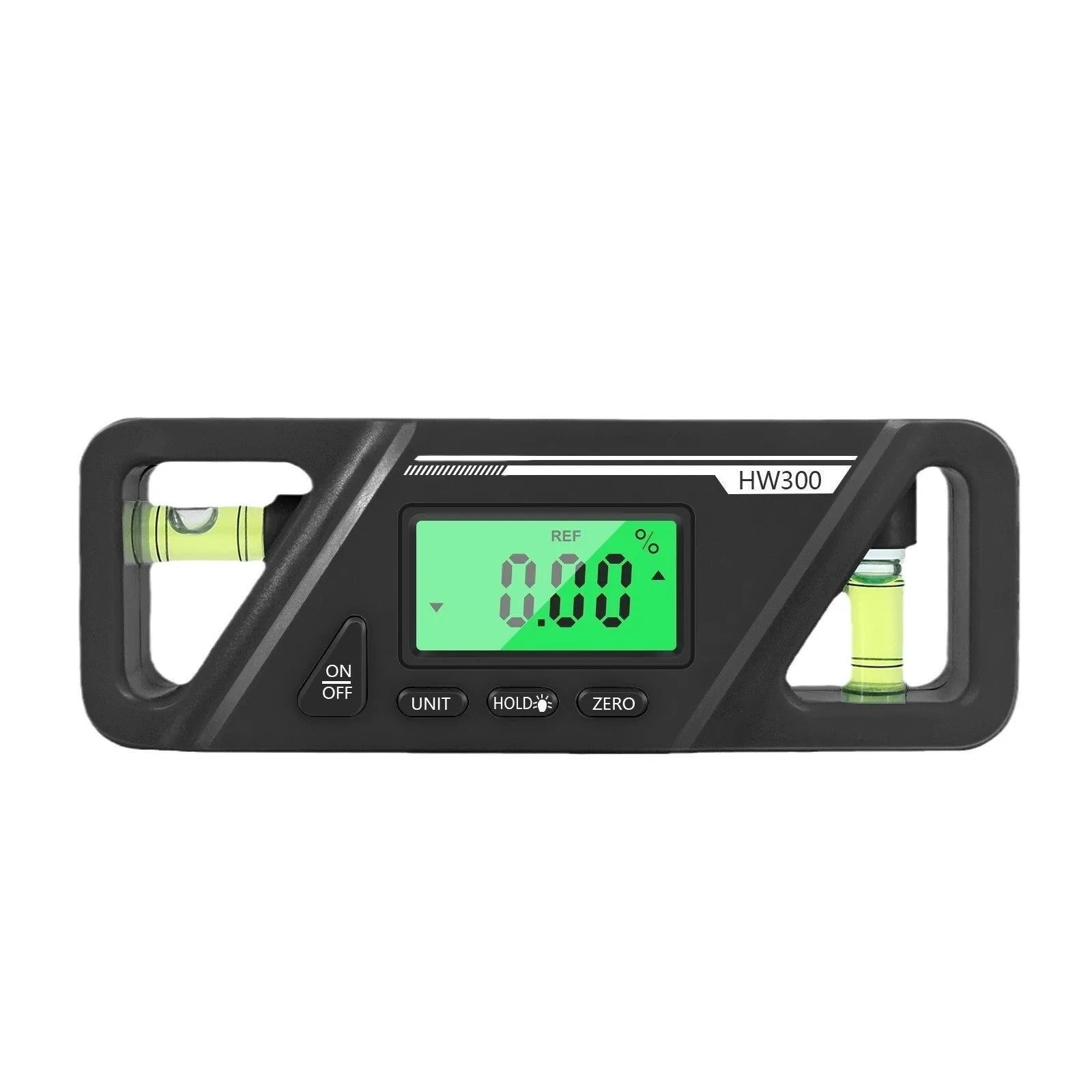

HW300 Series Magnetic Digital Inclinometer: A Portable Tool for Angle and Slope Measurement

This HW300 series digital inclinometer is a compact measuring instrument designed for professionals and DIY enthusiasts who require accurate angular measurements. Its core function is to determine and set angles and slopes, which is useful in construction, machining, and installation tasks. The key advantage lies in its combination of a magnetic base, portable form factor, and digital readout, which provides a practical alternative to traditional spirit levels or manual protractors. The tool is designed for direct use on metallic surfaces and offers features like data locking and measurement conversion to improve workflow efficiency.

Features and Construction

The HW300 inclinometer is built around a set of technical specifications that define its measurement capabilities and physical build. Its construction prioritises portability and ease of use alongside functional accuracy.

Material and Build

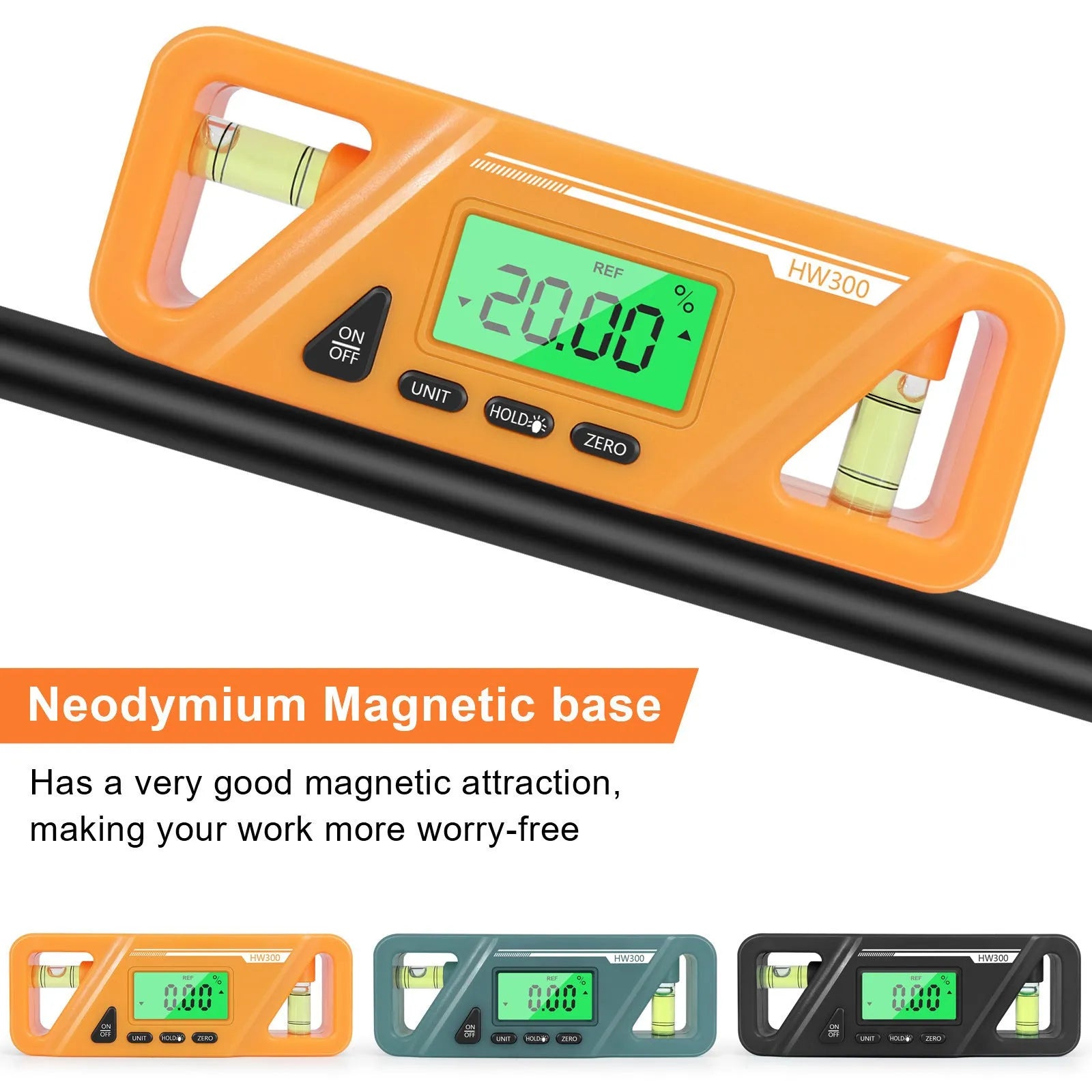

The unit's housing is made from plastic ABS, a material chosen for its balance of light weight and structural integrity. This contributes to the tool's net weight of just 56g (without battery), making it easy to carry in a toolkit or pocket. The material offers impact resistance for general job site handling. A key functional component is the integrated magnet within the base, allowing the instrument to adhere securely to ferromagnetic workpieces, such as steel beams, machinery, or metal fixtures, freeing the user's hands.

Size and Practical Fit

With dimensions of 115mm long, 42mm wide, and 22mm thick, the inclinometer has a compact, handheld profile. This portable size allows it to be used in confined spaces and makes it simple to use alongside other measuring tools, potentially expanding the range of applications. The unit is supplied with a clear digital display that shows angle readings. The packaging size is 120 x 48 x 28mm, and the total packaged weight is 72g, indicating minimal additional bulk for storage or shipping.

Uses and Placement

The inclinometer serves specific measurement functions that are applicable in various professional and personal project contexts. Its design supports both one-off checks and repeated measurement tasks.

Event or Professional Use

In professional settings like construction, engineering, or metalworking, this tool can be used to verify the level of foundations, set precise angles on machinery, or check the pitch of roofs and drainage systems. The magnetic adsorption is particularly valuable on job sites with metal structures, providing a hands-free, stable reference point. The ability to convert between relative and absolute measurements, and between angles and slopes, adds versatility for interpreting results according to different project requirements or standards.

Everyday Home Use

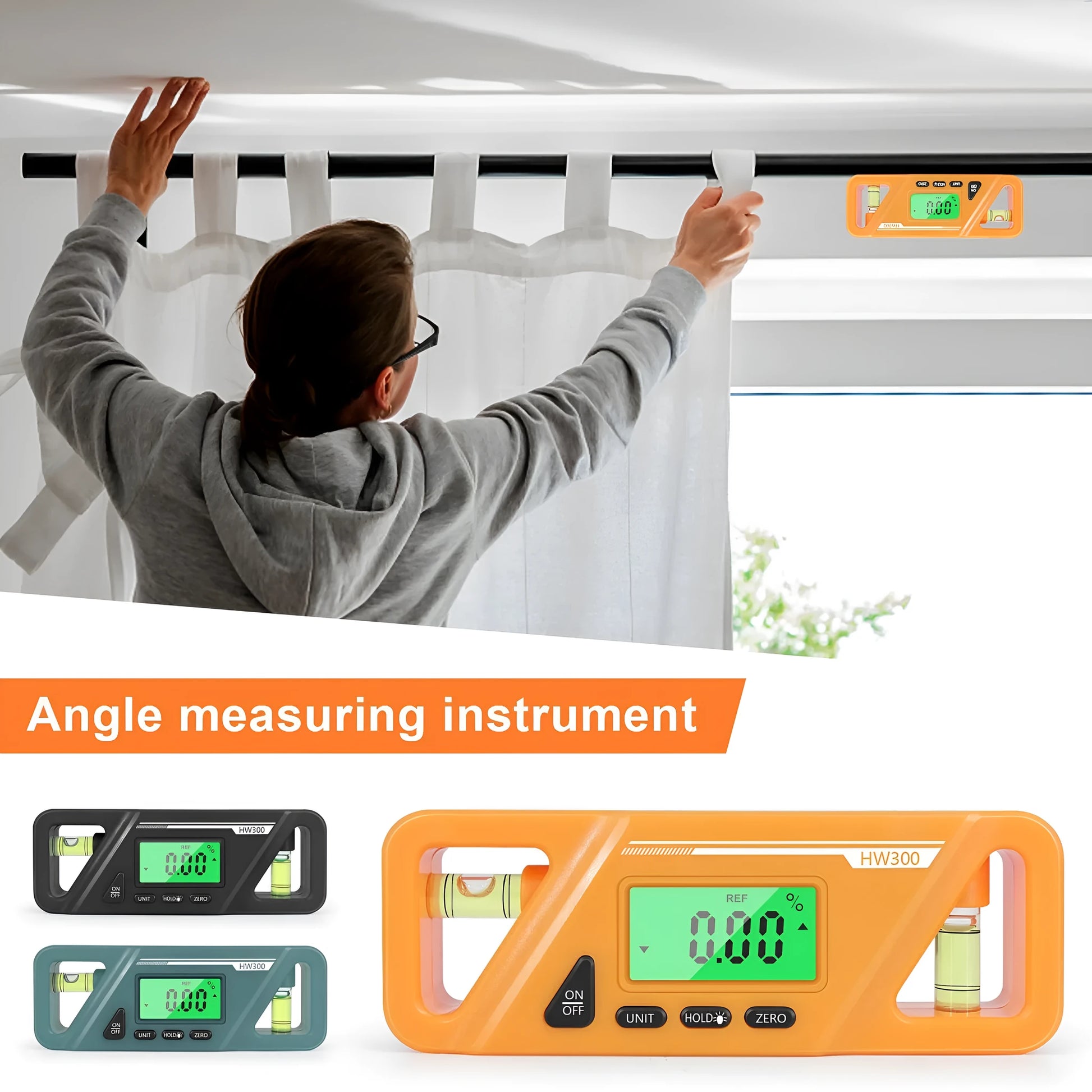

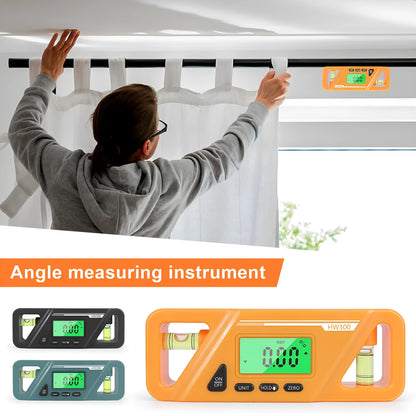

For home improvement projects, the inclinometer can assist with tasks such as levelling shelves, setting the angle of a new fence post, checking the slope of a patio for drainage, or aligning picture frames. The data lock function is beneficial in these scenarios, allowing the user to fix a reading in place before moving the tool, making it easier to record or transfer measurements. Its portability means it can be easily taken to different parts of a home or garden as needed.

Benefits and Buying Value

The value of this measuring tool is derived from its specific features, accuracy, and the practical problems it solves compared to less specialised methods.

Reuse and Low Maintenance

The instrument is designed for repeated use across multiple projects. Its stated accuracy of ±0.2° and repeatability of 0.1° suggest consistent performance over time when used within its 0°C to 40°C operating range. Maintenance is minimal, primarily involving occasional battery replacement. The ABS plastic housing is wipe-clean, and the lack of complex moving parts reduces the risk of mechanical failure under normal use conditions.

Why Choose This Product

This digital inclinometer is chosen for its specific combination of a magnetic base, digital precision, and compact size. It provides a more direct and often more accurate reading than visual estimation or simple bubble levels, especially for slope percentage. The magnetic feature differentiates it from non-magnetic angle finders, offering a secure mounting option on appropriate surfaces. For users who frequently work with angles on metal objects or need a tool that can be easily stored and transported, this model presents a focused, functionally rich solution.
