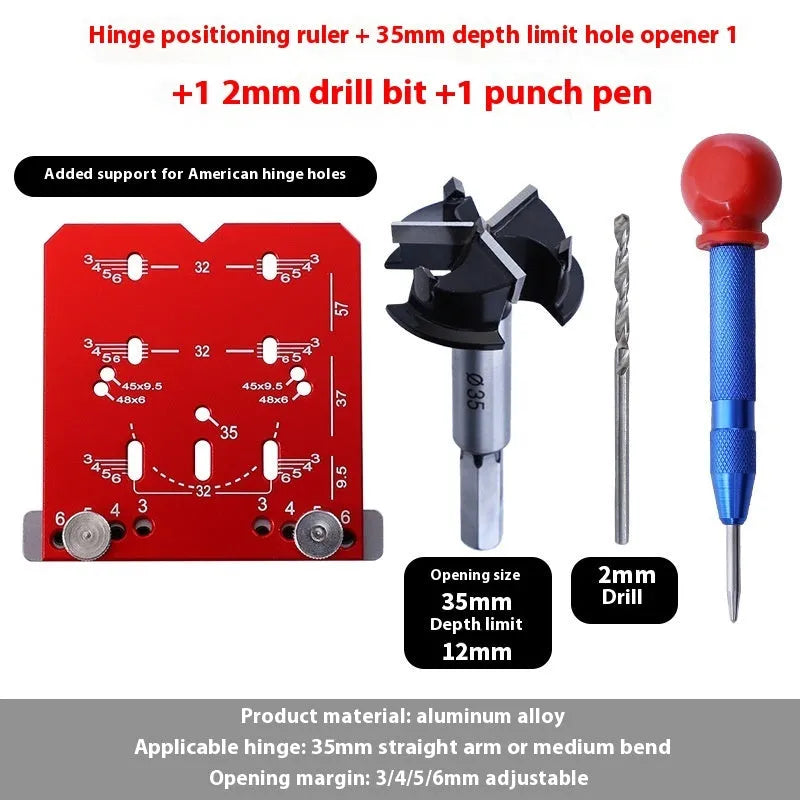

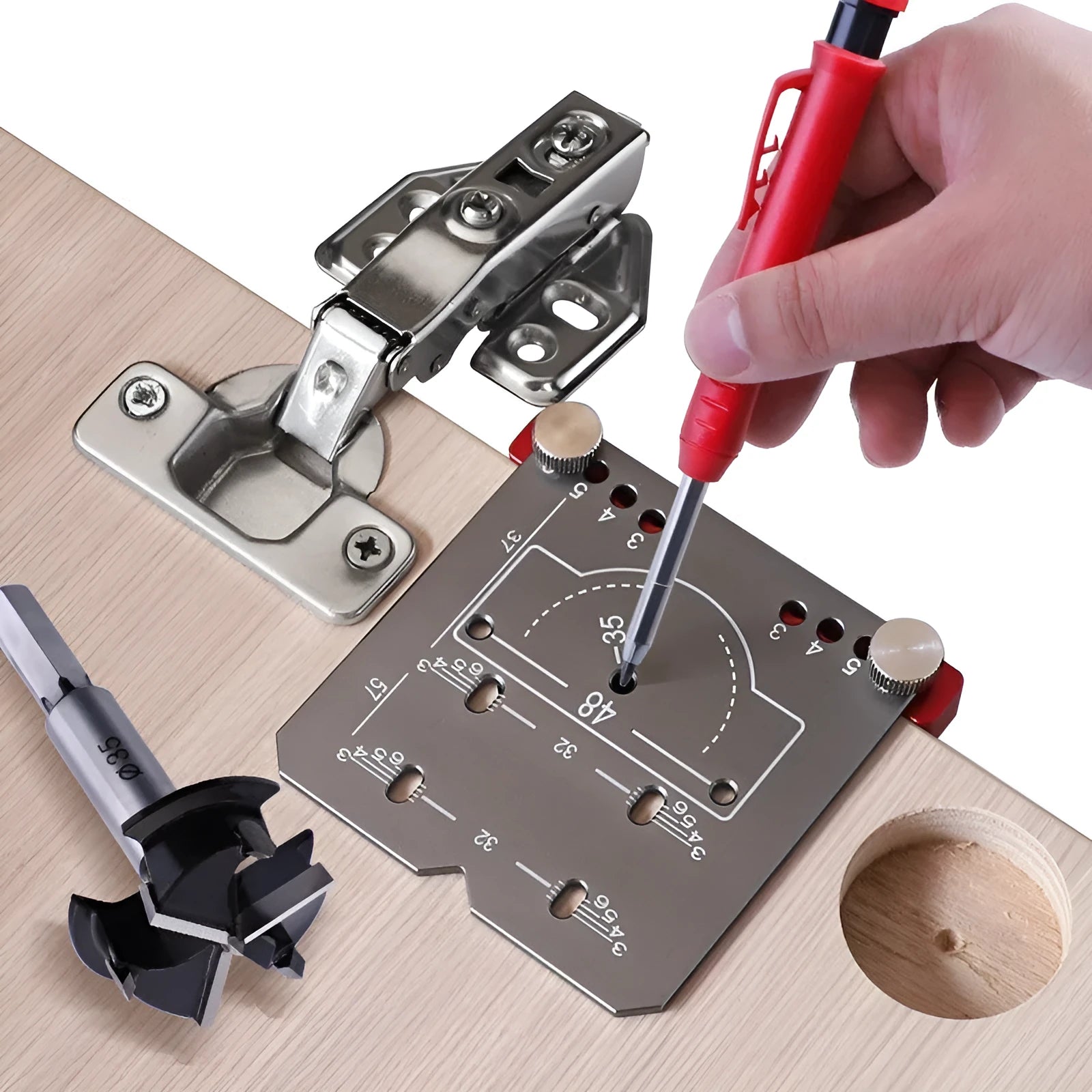

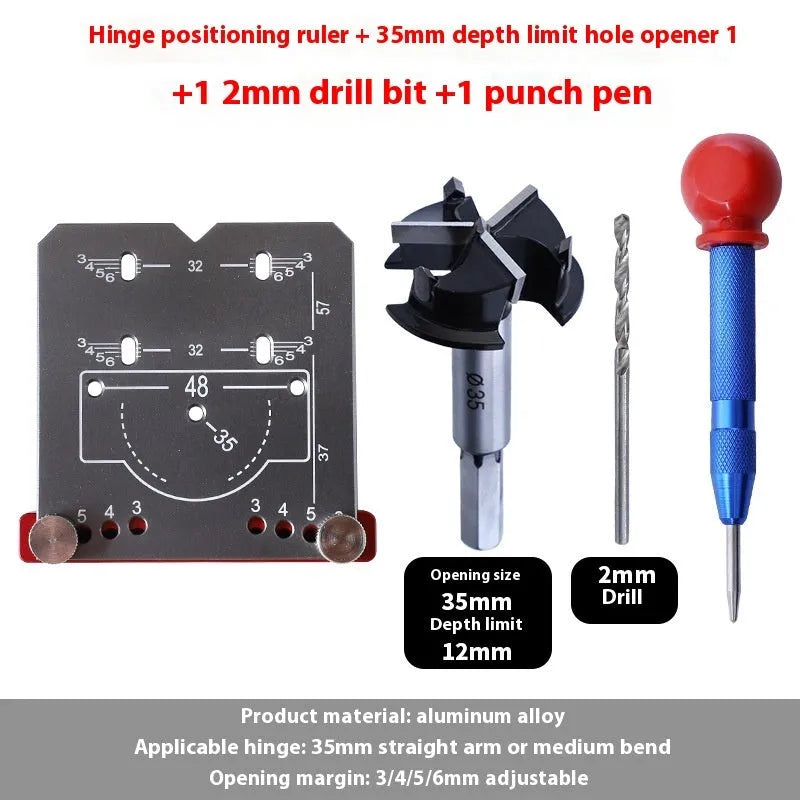

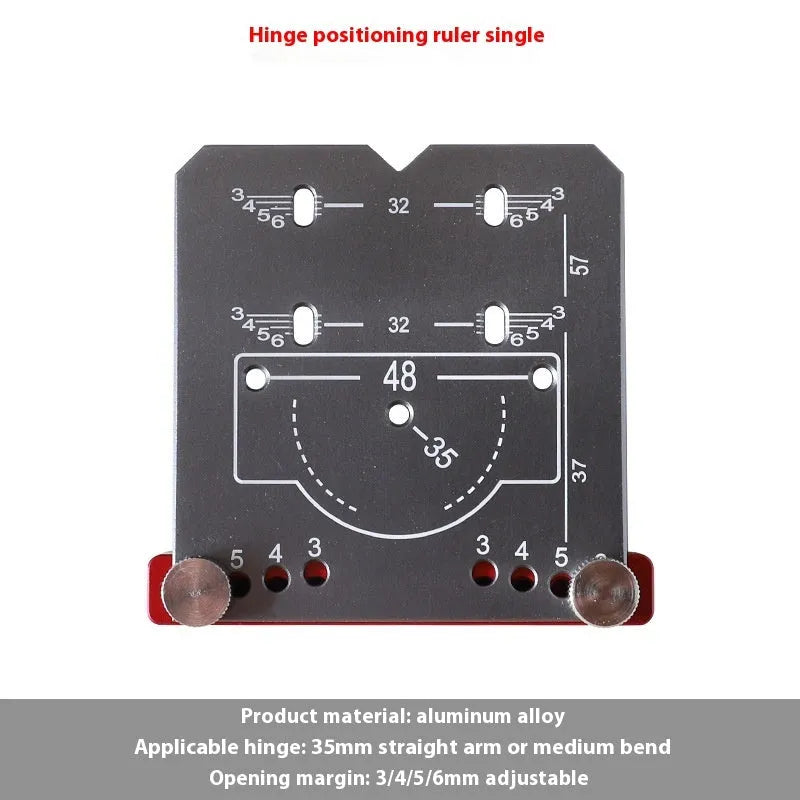

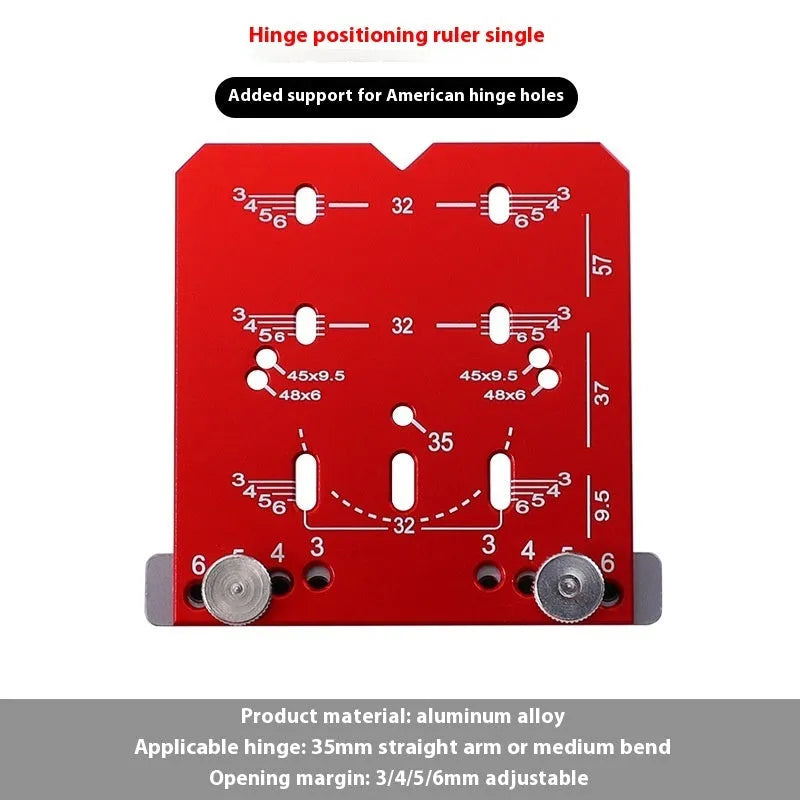

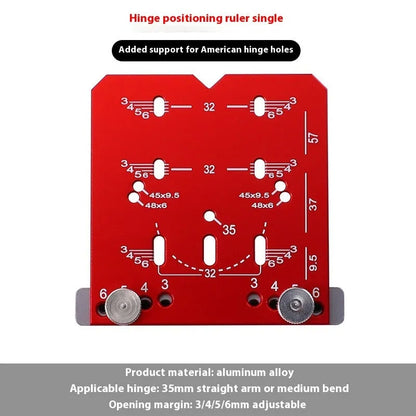

35mm hinge punch locator tool with adjustable margin marks for cabinet and wardrobe installation

Installing cabinet door hinges accurately presents a challenge for both DIY enthusiasts and professionals working on wardrobes, kitchen cabinets, and fitted furniture. This hinge locating rule addresses this precise need by providing a dedicated tool designed specifically for 35mm extended arm and middle bend hinges. With adjustable margin marks offering settings of 3mm, 4mm, 5mm, and 6mm, the tool eliminates guesswork and measurement errors that can lead to misaligned doors and frustrating rework. Constructed from aluminium alloy with a hard alloy blade component, this locating tool brings professional-grade accuracy to household woodworking projects while remaining accessible for occasional use.

Features and Construction

The hinge locating rule combines practical design with material choices suited to repeated use in woodworking environments. Its functionality centres around precise hinge placement, while its construction ensures it can withstand the demands of DIY projects without requiring specialist maintenance or care.

Material and Build

The main body of the hinge locating rule is fabricated from aluminium alloy, a material selection that provides a balance between durability and manageable weight for handheld tools. This aluminium construction contributes to the tool's longevity without adding unnecessary heft during extended use. The limit tapper component features a hard alloy blade that has undergone high-temperature heat treatment, a process that increases the blade's hardness substantially. This treatment results in a cutting edge that maintains its sharpness through multiple uses and demonstrates enhanced wear resistance compared to untreated blades, supporting repeated marking operations without rapid deterioration.

Size and Practical Fit

The tool is specifically engineered for 35mm extended arm and middle bend hinges, which represent common hinge types used in cabinet door and wardrobe installations. This specialised focus ensures proper fit and accurate positioning that generic marking tools cannot guarantee. The adjustable margin system offers four distinct settings – 3mm, 4mm, 5mm, and 6mm – allowing users to select the precise hinge opening required for their particular installation scenario. This adjustability broadens the tool's application range beyond a single fixed measurement, making it versatile enough to handle various cabinet styles and hinge types within the 35mm category while maintaining consistent accuracy across different margin requirements.

Uses and Placement

This locating tool finds its primary application in woodworking projects involving fitted furniture and cabinetry, particularly where hinge installation accuracy directly impacts the final result. Its design supports both occasional household use and more regular DIY project work, bridging the gap between professional tools and accessible home improvement equipment.

Event or Professional Use

For professional installers or serious DIY enthusiasts undertaking multiple cabinet installations, the hinge locating rule streamlines what is typically a time-consuming measurement process. The hard alloy blade's heat-treated hardness ensures it maintains marking precision throughout extended project work, whether installing a complete kitchen's worth of cabinet doors or fitting multiple wardrobe units in a renovation project. The tool's specific design for 35mm hinges eliminates the need for manual calculation of hinge positions, reducing installation time while improving consistency across multiple doors and cabinets – a particular advantage when creating symmetrical installations or working with pre-drilled cabinet frames.

Everyday Home Use

For household applications such as replacing worn hinges on existing cabinets or installing new wardrobe doors, this tool simplifies what might otherwise be a daunting precision task. The adjustable margin marks provide clear guidance without requiring users to understand complex hinge geometry or make calculated measurements. The aluminium alloy construction keeps the tool lightweight enough for comfortable use during occasional projects, while still providing sufficient rigidity for accurate marking. Home users benefit from the professional results achieved through the tool's dedicated design, particularly when working with modern cabinet systems that rely on precise hinge placement for proper door alignment and smooth operation.

Benefits and Buying Value

The hinge locating rule offers practical advantages centred around accuracy, repeatability, and time savings during installation projects. Its value derives from both immediate usability and longer-term practicality, particularly for users who undertake periodic woodworking or furniture installation tasks.

Reuse and Low Maintenance

Constructed from aluminium alloy and featuring a heat-treated hard alloy blade, the tool requires minimal maintenance between uses. The materials resist corrosion and wear under normal storage conditions, ensuring the tool remains ready for future projects without specialised care. The hard alloy blade's enhanced wear resistance means it maintains marking sharpness through multiple applications, supporting repeated use across different projects over time. This durability contributes to the tool's long-term value, particularly compared to improvised marking methods that might require replacement or recalibration with each use.

Why Choose This Product

This hinge locating rule addresses a specific gap in DIY tooling by providing dedicated equipment for a common yet precision-dependent task. Its specialised design for 35mm hinges ensures accuracy that generic measuring tools cannot guarantee, while the adjustable margin system accommodates different installation requirements without requiring multiple specialised tools. The material selection balances practical durability with user comfort, creating a tool that performs reliably without demanding professional-grade maintenance or storage conditions. For anyone installing cabinet doors, wardrobe hinges, or similar fitted furniture components, this tool transforms a measurement-intensive process into a straightforward, repeatable operation with consistent professional results.
