Owon HDS272 Handheld Digital Oscilloscope: 40–70 MHz Portable Scope for Auto Repair

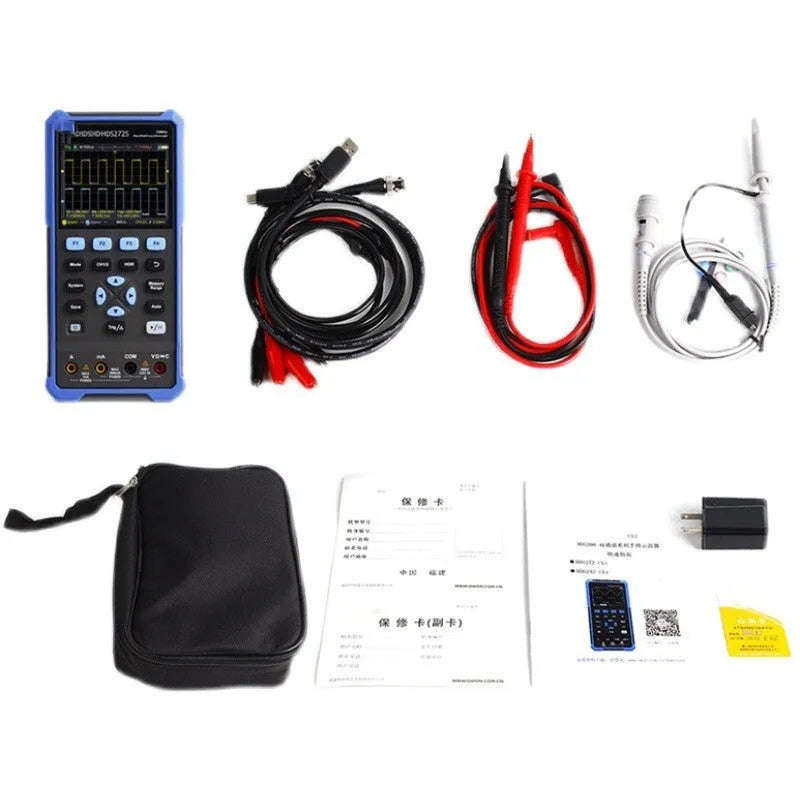

Engineers, technicians, and automotive professionals often need to carry out electrical diagnostics in tight spaces or remote locations where a benchtop oscilloscope isn’t practical. The Owon HDS272 handheld digital oscilloscope delivers a compact, fully-featured measurement tool designed for these scenarios. With a specified bandwidth of 40–70 MHz and a real-time sampling rate of 250 MSa/s, it captures detailed waveforms to help identify faults in circuits, sensors, and communication lines. The package includes everything required for immediate use: an oscilloscope probe, multimeter pen, USB cable, calibration accessories, and a protective portable bag. This makes it a self-contained solution for fieldwork, vehicle diagnostics, and on-site servicing without relying on external power or extra equipment.

Features and Construction

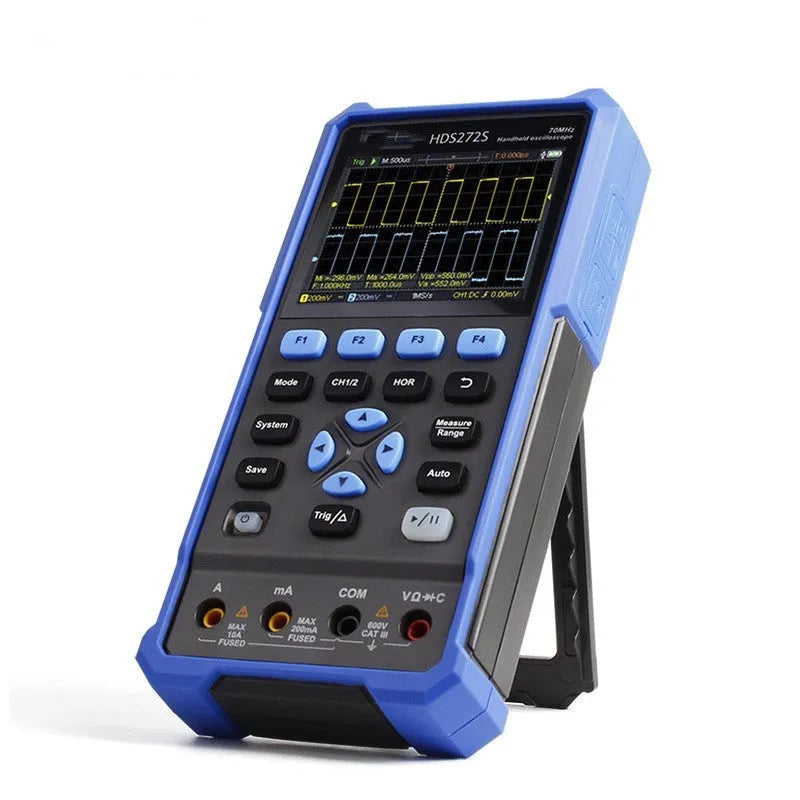

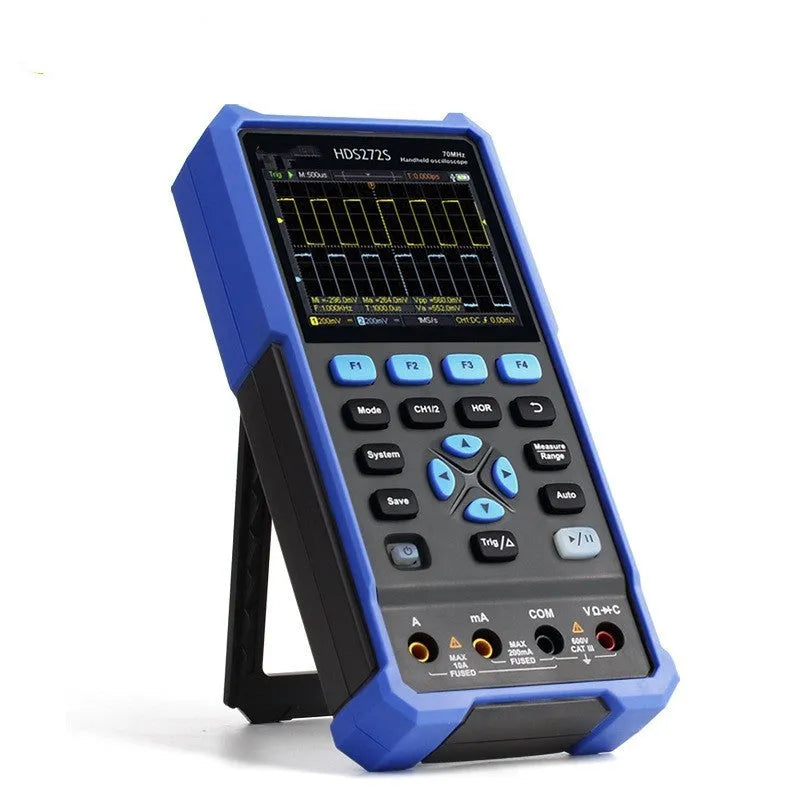

The HDS272 is built around a digital sampling architecture optimised for portability and ease of use. Its key specifications—bandwidth, sampling rate, and waveform capture rate—define its capability in real-world testing environments. The physical design prioritises a balance between screen visibility, button layout, and overall size, ensuring it remains functional while being genuinely handheld.

Material and Build

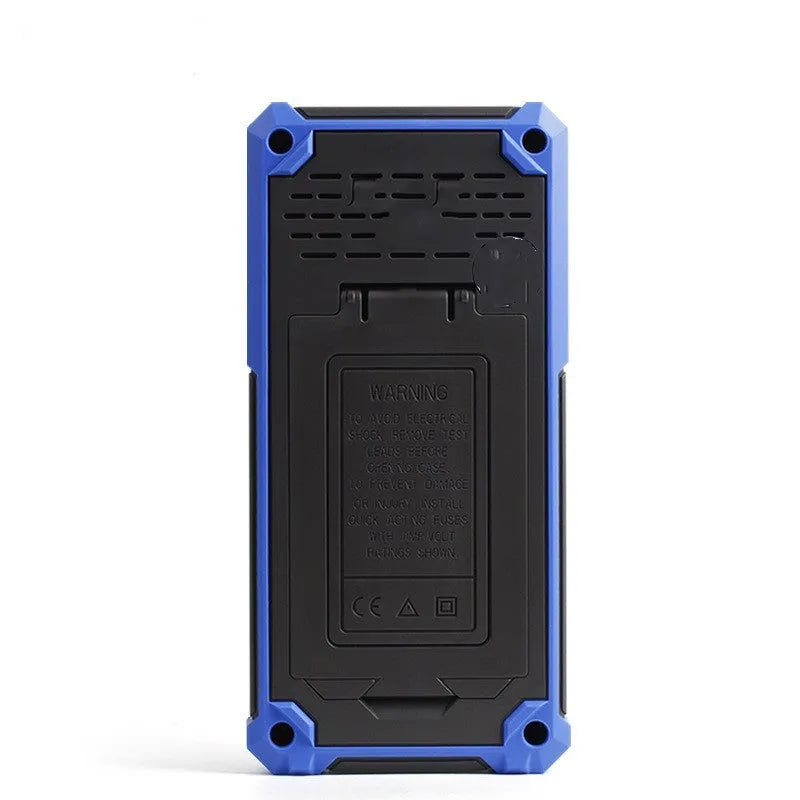

The oscilloscope housing is manufactured from robust plastic composites commonly used in professional handheld test instruments. This choice of material keeps weight low while providing sufficient protection for the internal electronics during transport. Connections use standard BNC and USB ports, with supplied adaptors such as the BNC-to-crocodile clip enabling quick hook-up to test points. The construction focuses on reliability in workshop and field conditions rather than decorative finishes.

Size and Practical Fit

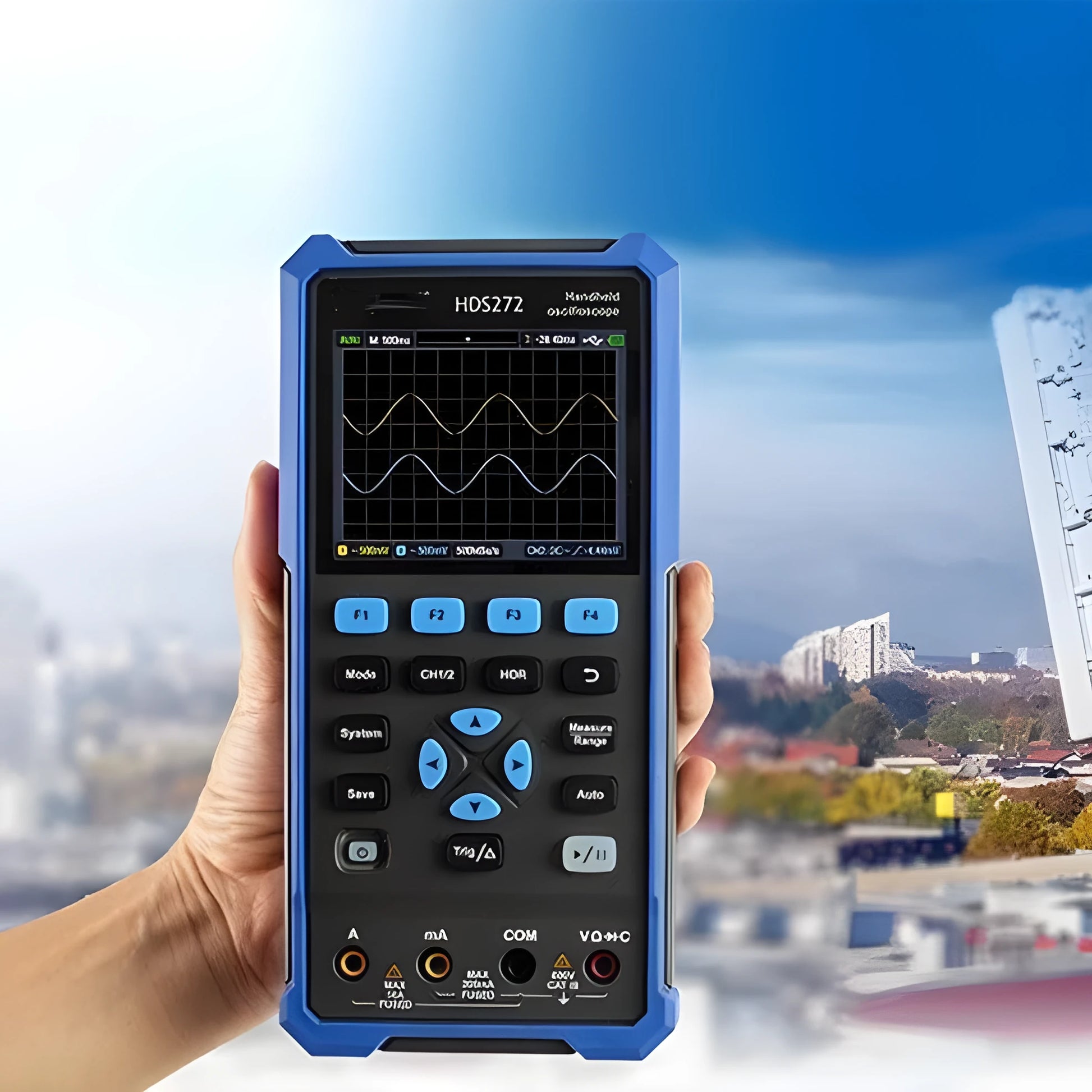

Measuring 198 mm long, 96 mm high, and 38 mm deep, the unit is significantly smaller than a traditional benchtop oscilloscope. This compact form factor allows it to be stored in the included portable bag alongside its probes and accessories, fitting easily into a toolkit or backpack. The dimensions make it simple to position near a vehicle’s ECU, industrial control panel, or prototype board without needing extensive bench space.

Uses and Placement

This oscilloscope suits applications where mobility and quick setup are advantageous. Its specified performance parameters support common diagnostic tasks in automotive, industrial maintenance, and electronics development. The included multimeter pen extends its functionality beyond waveform viewing, providing basic voltage, continuity, and resistance checks in one kit.

Event or Professional Use

In automotive repair, the 10000 wfms/s waveform capture rate helps capture intermittent signals from crank sensors, ignition coils, or CAN bus lines. The 40–70 MHz bandwidth is adequate for analysing most engine-control signals, sensor outputs, and switching waveforms found in modern vehicles. Technicians can use the portable bag to carry the scope between bays or on roadside call-outs, with the USB cable allowing data transfer or external power if needed.

Everyday Home Use

For electronics hobbyists, makers, or students, this handheld scope offers a more accessible entry point than larger, costlier benchtop models. The straightforward probe connections and included manual enable basic circuit debugging, Arduino signal inspection, and power supply testing. Its size makes it easy to store on a shelf or in a drawer when not in use, avoiding the permanent bench footprint of larger equipment.

Benefits and Buying Value

The value of this oscilloscope lies in its portability, inclusive accessory set, and performance tailored for common field and workshop tasks. It reduces the need to invest in separate multimeters, probes, and carrying cases, as these are all supplied. Maintenance is minimal, focusing on proper storage and periodic calibration using the included correction pen.

Reuse and Low Maintenance

Because the oscilloscope is designed for repeated field use, the portable bag helps protect it from dust, moisture, and accidental impacts during transport. The probe and accessories are standard items that can be replaced or supplemented if needed. Basic care involves keeping connectors clean and following the calibration steps in the manual to ensure measurement accuracy over time.

Why Choose This Product

Select this handheld oscilloscope if your work involves troubleshooting electrical systems away from a fixed workstation. Its combination of 40–70 MHz bandwidth, 250 MSa/s sampling, and complete accessory kit addresses the core requirements for mobile diagnostics. The compact dimensions and included carrying bag make it a practical, ready-to-deploy tool for auto mechanics, field service engineers, and electronics enthusiasts who value convenience without sacrificing essential measurement functions.
