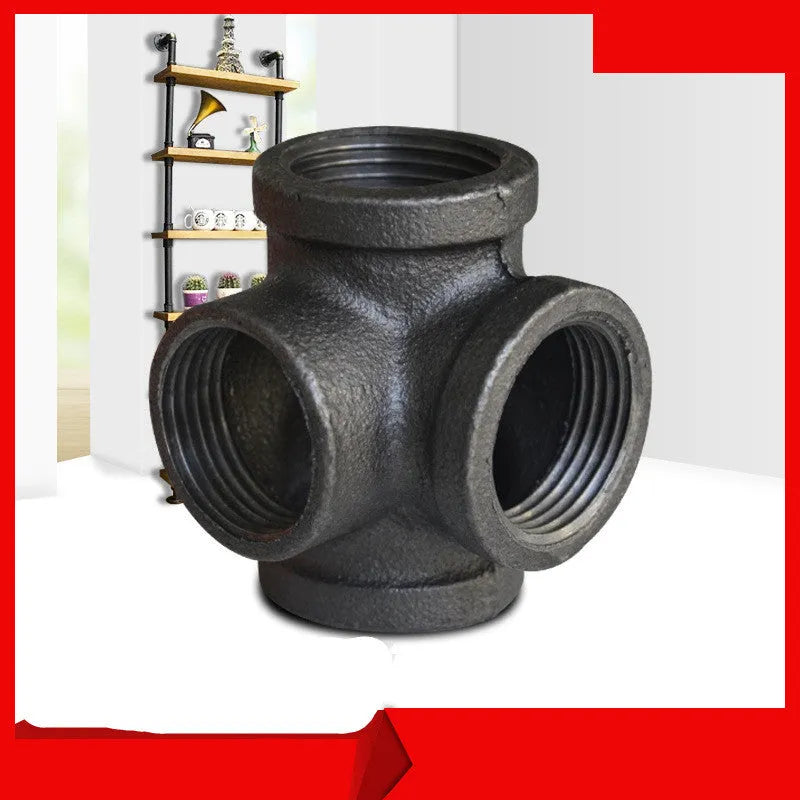

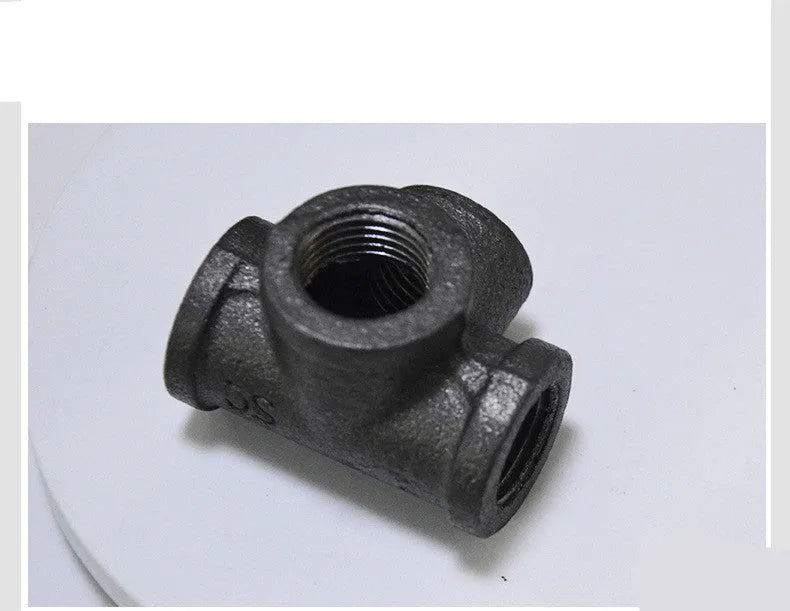

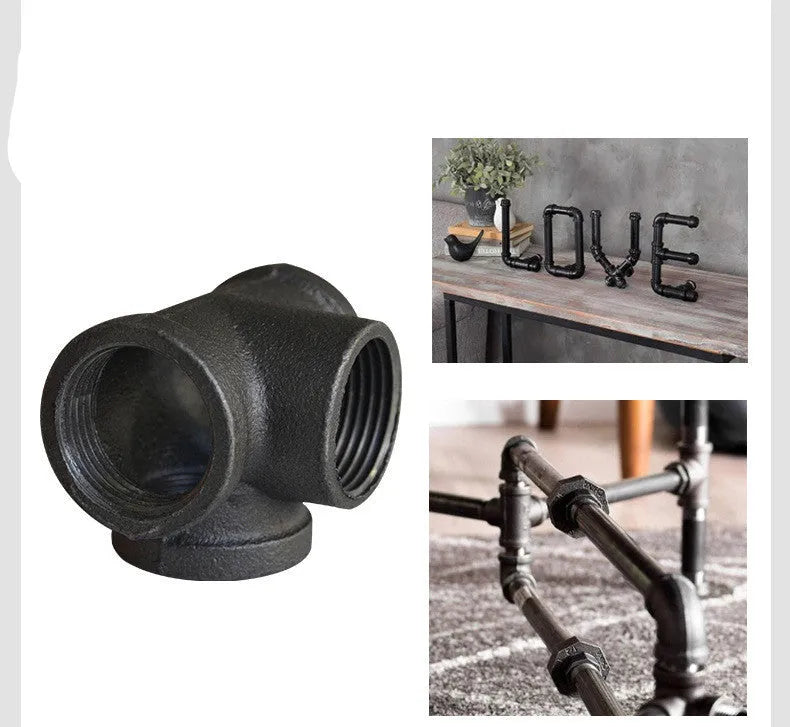

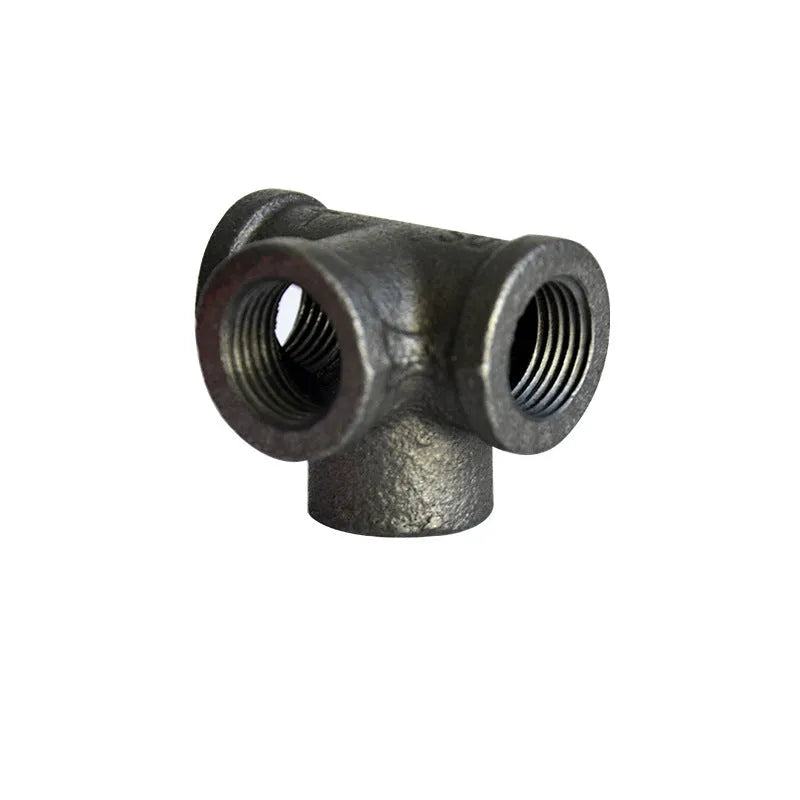

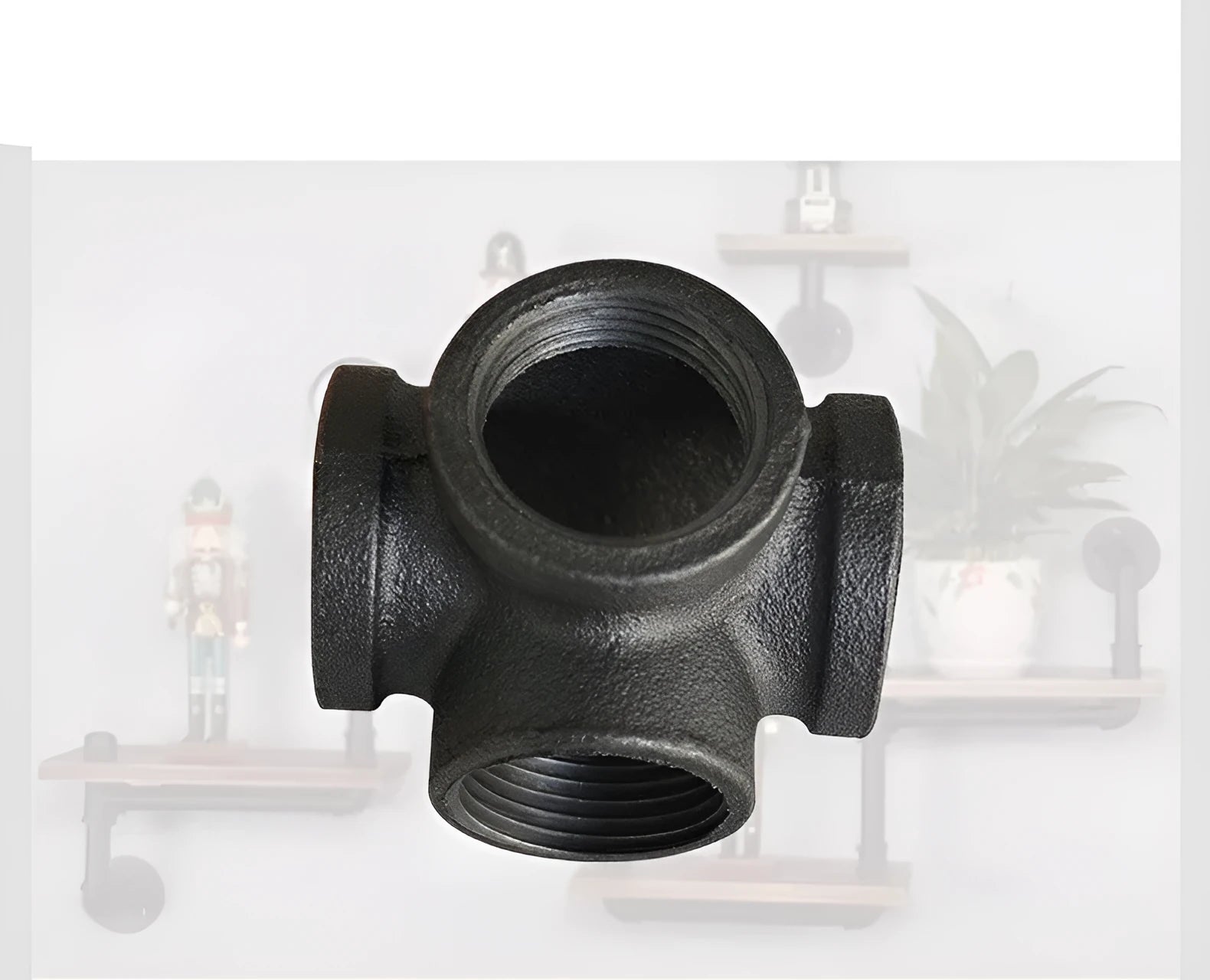

Galvanised steel malleable iron pipe fittings: three-dimensional four-way corner connectors for 15-25mm water pipes

These galvanised steel pipe fittings provide specialised connection solutions for water pipe systems that require branching in multiple directions. Made from malleable iron with a galvanised coating, they're designed to create stable junctions where pipes meet at right angles in three dimensions. Available in three standard diameters - DN15 (15mm), DN20 (20mm), and DN25 (25mm) - they accommodate various pipe sizes commonly used in residential and commercial water installations. With a tube thickness of 2mm and wall thickness of 2mm, they maintain structural integrity while offering corrosion resistance for longevity in water system applications.

Features and Construction

The three-dimensional four-way corner design distinguishes these fittings from standard connectors, allowing pipes to intersect at 90-degree angles in multiple planes simultaneously. This configuration is particularly useful for creating complex piping layouts where space constraints or specific routing requirements exist. The fittings are constructed from malleable iron, which has been galvanised with a steel coating to provide corrosion resistance, an important feature for water pipe systems where moisture is constantly present.

Material and Build

Malleable iron forms the core material of these pipe fittings, chosen for its balance of strength and workability in pipe connection applications. The galvanised steel coating applied to the surface provides a protective layer against corrosion, which is particularly valuable in water pipe installations where constant moisture exposure could lead to rust formation over time. This combination of materials - malleable iron for structural integrity and galvanised steel for surface protection - creates fittings designed to maintain their function in water system environments.

Size and Practical Fit

Available in three standard diameter sizes, these fittings accommodate the most common pipe dimensions used in water installations. The DN15 size fits 15mm diameter pipes, DN20 fits 20mm pipes, and DN25 fits 25mm pipes. This range covers typical residential and light commercial water pipe requirements. The 2mm tube thickness and 2mm wall thickness provide sufficient material strength for standard water pressure applications while maintaining compatibility with corresponding pipe dimensions.

Uses and Placement

The three-dimensional four-way corner configuration makes these fittings particularly suitable for situations where piping needs to change direction in multiple planes simultaneously. Unlike standard straight connectors or simple elbow joints, this design allows for more complex routing without requiring multiple separate fittings, potentially simplifying installation in constrained spaces or where precise alignment is necessary.

Event or Professional Use

For professional plumbing installations, these fittings provide a solution for creating stable junctions in water systems where pipes need to branch in multiple directions from a single point. Their three-dimensional configuration can reduce the number of separate connections needed for complex routing, potentially saving installation time and creating fewer potential leak points. The 16 grade compressive strength rating indicates suitability for standard water pressure systems commonly found in residential and commercial buildings.

Everyday Home Use

In residential applications, these fittings could be used in situations where water pipes need to service multiple fixtures from a central junction point, particularly where space constraints make traditional routing methods challenging. The corrosion-resistant galvanised coating helps maintain appearance and function in areas where pipes might be visible or exposed to humidity. The availability in three common diameters (15mm, 20mm, and 25mm) means they're compatible with standard residential pipe sizes.

Benefits and Buying Value

These galvanised steel pipe fittings offer a specialised connection solution for specific piping scenarios where traditional straight connectors or simple elbows wouldn't suffice. Their three-dimensional four-way corner design addresses a particular need in pipe system layout, providing an option that might simplify otherwise complex installation requirements.

Reuse and Low Maintenance

The galvanised steel coating provides corrosion resistance, which can contribute to longer service life in water system applications compared to uncoated fittings. This protective layer helps maintain the fitting's structural integrity and appearance over time, potentially reducing maintenance needs. Malleable iron as a base material offers good durability for the mechanical stresses experienced in pipe connections.

Why Choose This Product

These fittings are designed for specific applications where water pipes need to branch in multiple directions from a single junction point. The three-dimensional four-way corner configuration provides a solution that might otherwise require multiple separate fittings and more complex installation. Available in three standard diameters (15mm, 20mm, and 25mm) with consistent 2mm tube and wall thickness, they offer compatibility with common pipe sizes while providing the corrosion resistance benefits of galvanised steel coating.
