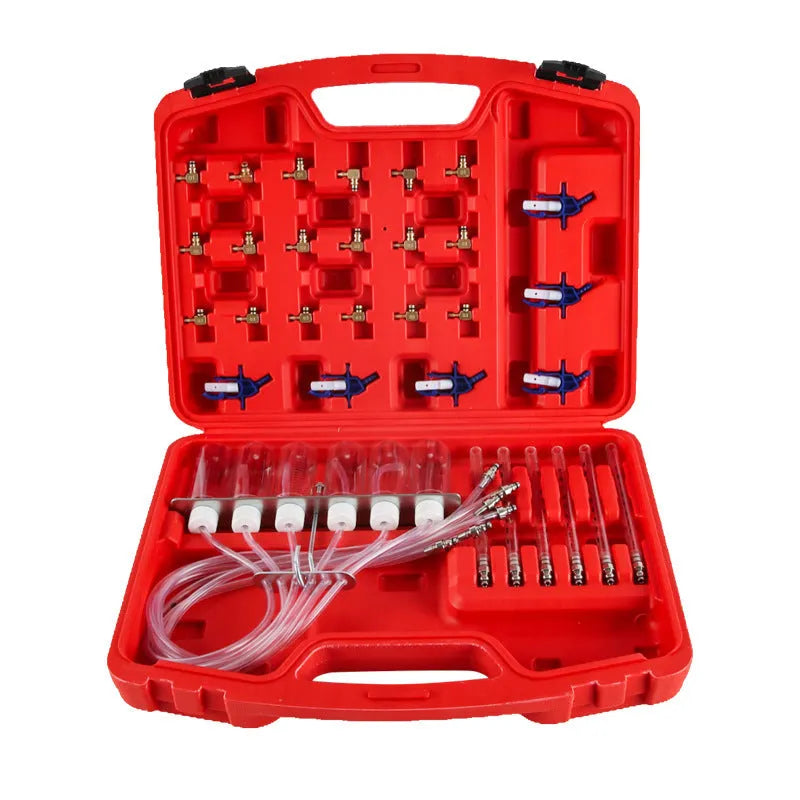

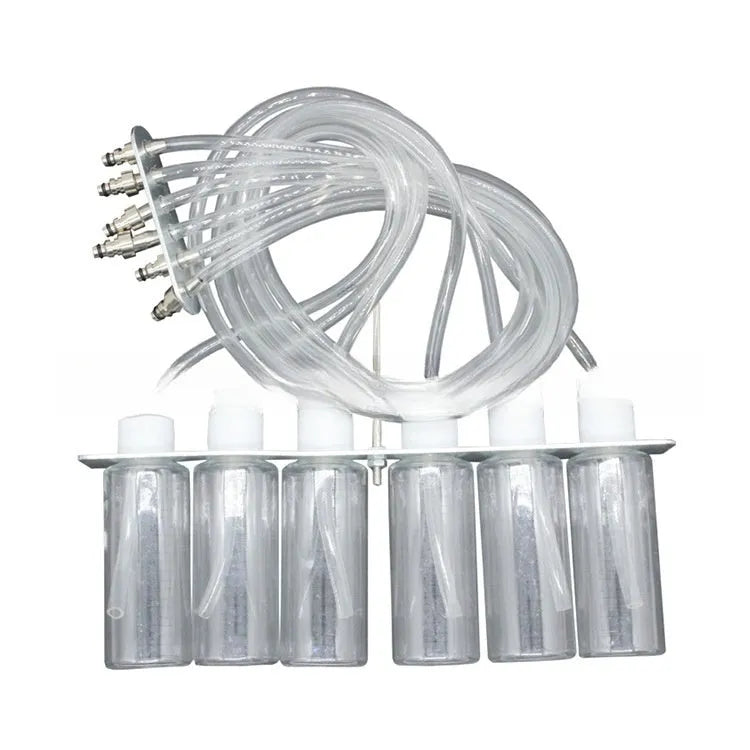

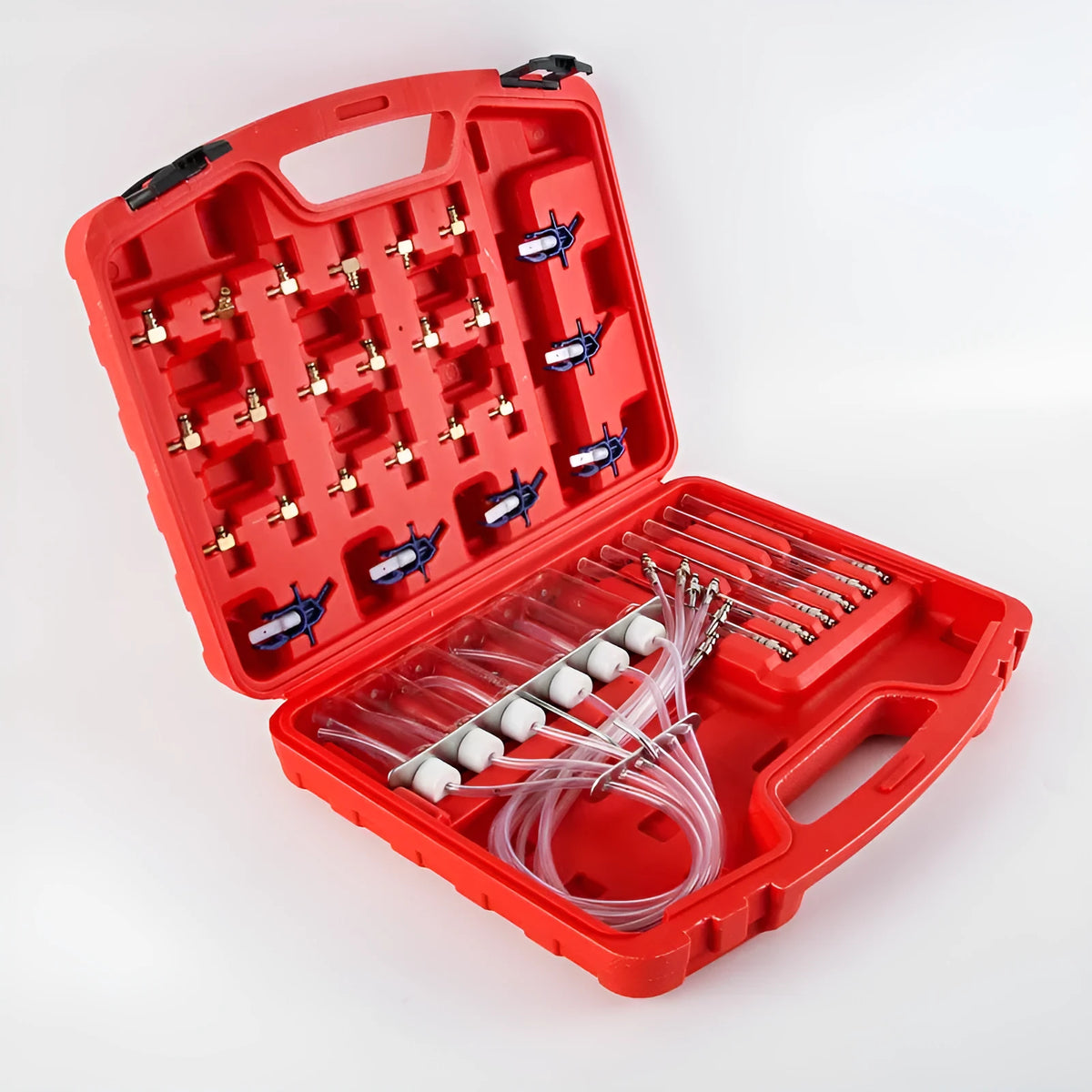

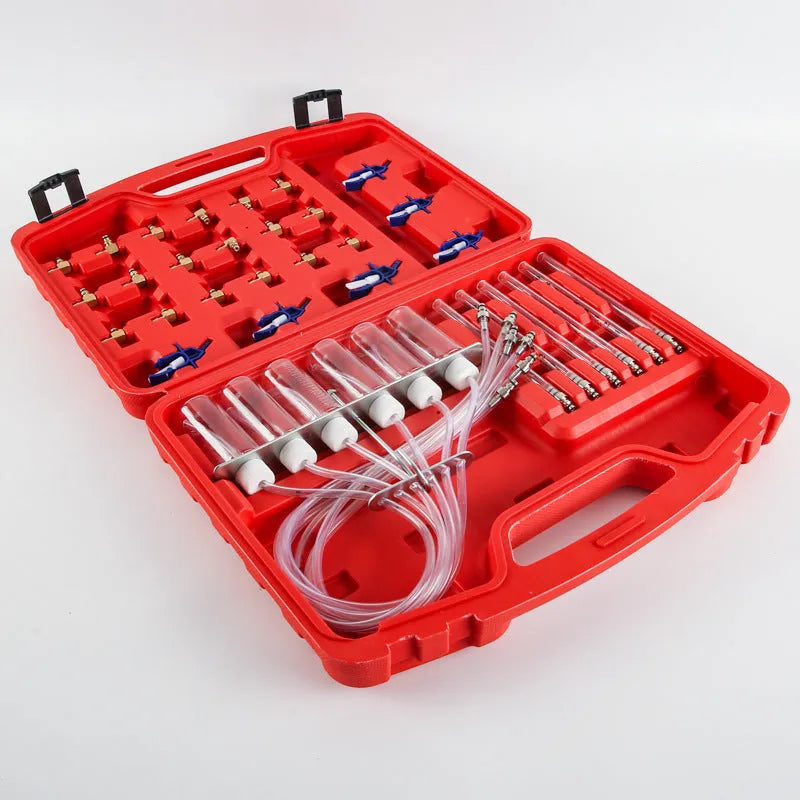

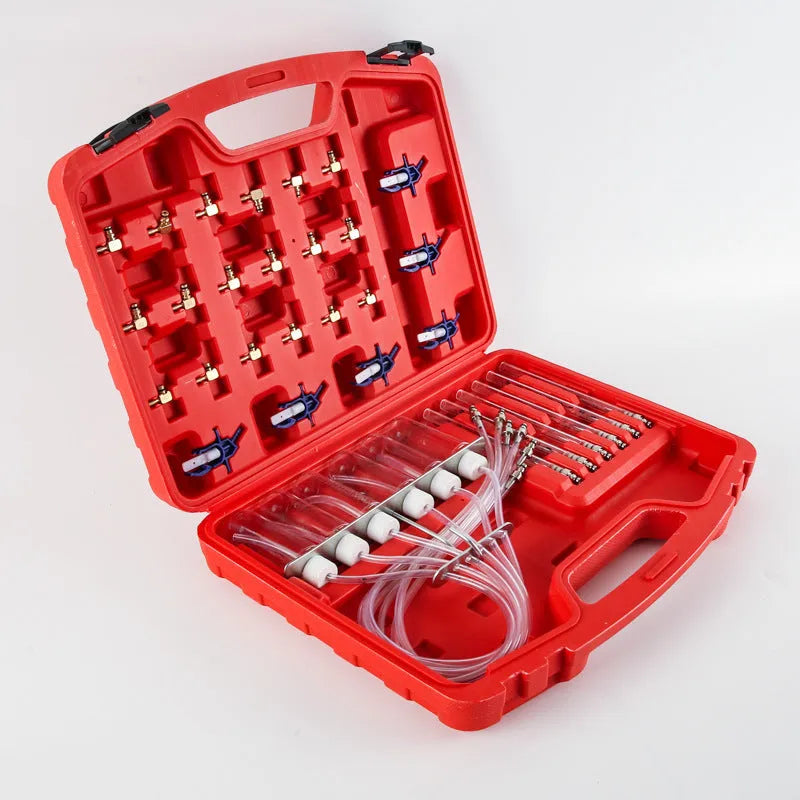

Fuel Injection Flow Meter: A 37.5cm Brass and Plastic Tool for Measuring Nozzle Oil Return

This fuel injection flow meter serves as a dedicated car fault detector, designed to provide a measurable check on a critical component of engine performance. By focusing on the specific function of measuring fuel injection nozzle oil return, it allows mechanics and technically-minded enthusiasts to assess injector health and identify inconsistencies in fuel delivery. This direct diagnostic approach can help pinpoint issues that affect engine efficiency, drivability, and emissions. The tool's design centres on practicality, offering a physical instrument to gather data rather than relying solely on electronic error codes.

Features and Construction

The build and specifications of this detector are centred on its function as a mechanical measuring instrument for automotive fuel systems.

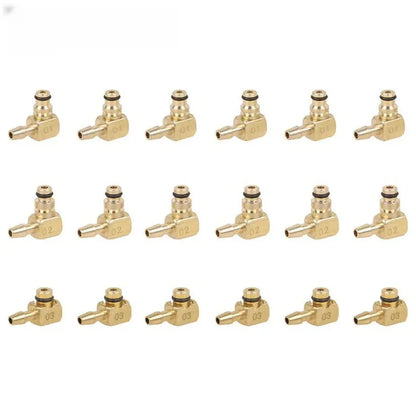

Material and Build

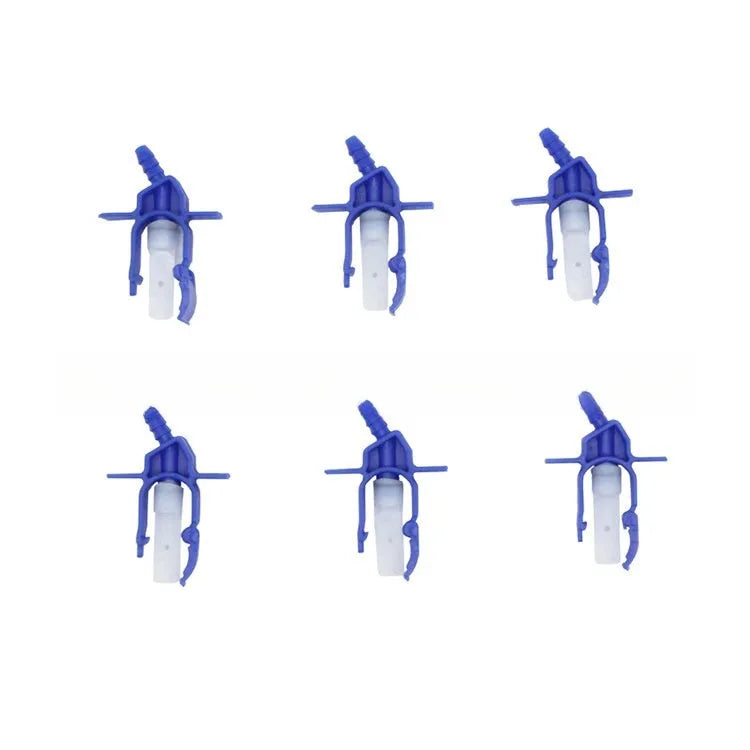

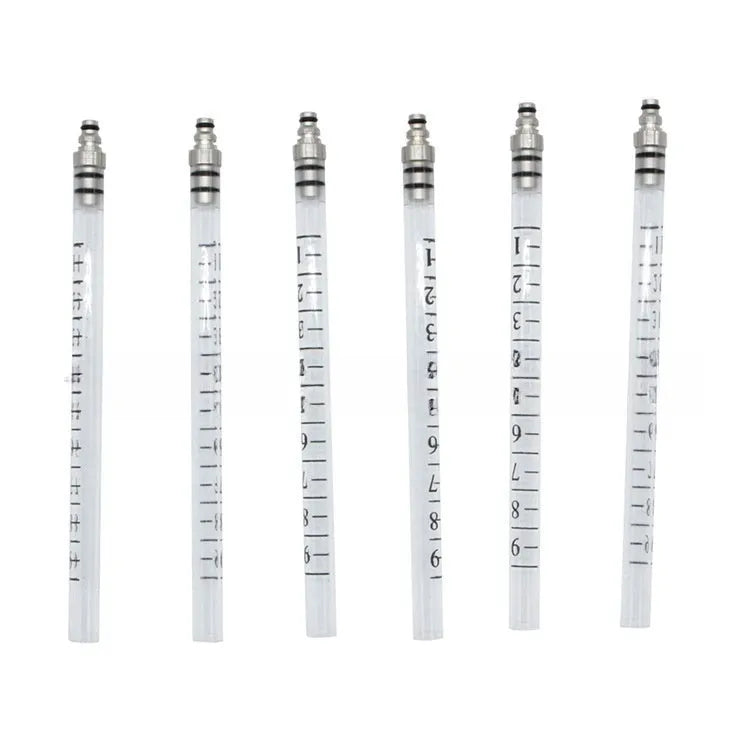

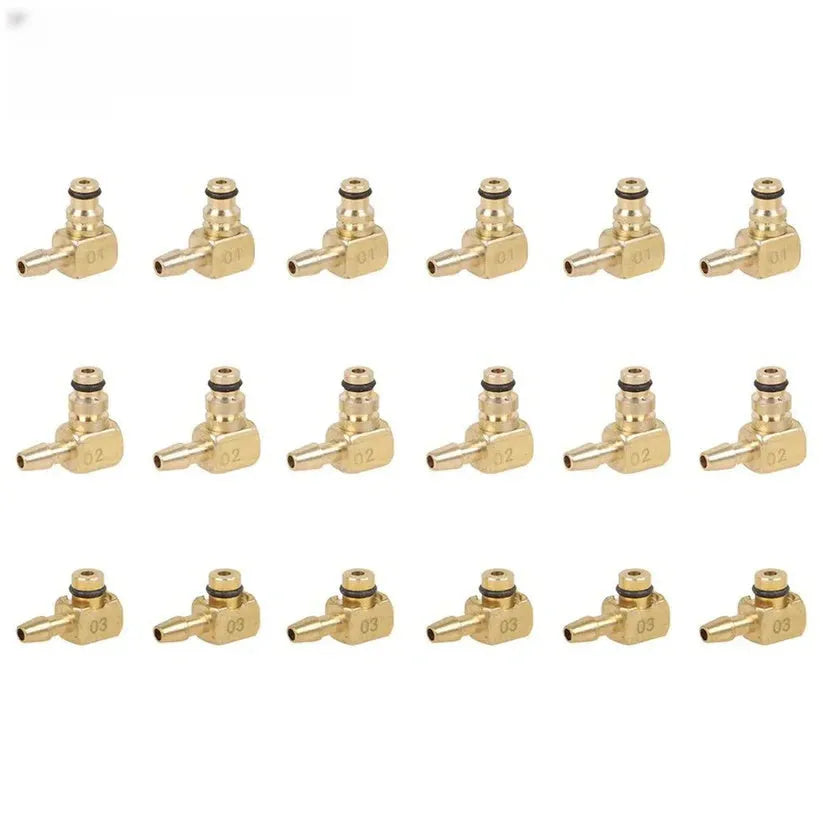

The flow meter is constructed from brass and plastic. The use of brass is common in fuel system components for its resistance to corrosion from petrol and diesel, which helps maintain the tool's accuracy and longevity when used with these fluids. The plastic elements likely form the housing, connectors, or measurement chambers, providing a lightweight and moulded structure that complements the brass fittings. This material combination creates a tool built for the practical environment of a workshop or garage.

Size and Practical Fit

The tool has defined external dimensions of 37.5cm in length, 27.5cm in width, and 7.5cm in height. This size indicates a handheld or benchtop unit that is compact enough for storage in a tool chest or on a shelf yet large enough to house the necessary internal pathways and measurement chambers for its function. Its proportions suggest it is designed to be connected to a vehicle's fuel rail or injectors via hoses, with the main body placed conveniently nearby during the testing procedure.

Uses and Placement

This instrument has clear applications in vehicle maintenance and troubleshooting scenarios where fuel system performance is in question.

Event or Professional Use

In a professional garage or for motorsport applications, this flow meter can be used as part of a routine service or pre-race check to verify that all fuel injectors are delivering fuel consistently and that their internal leak-down rates (oil return) are within acceptable parameters. Comparing measurements across multiple injectors on the same engine can reveal which ones are underperforming or failing, enabling targeted repairs. It provides tangible evidence to support diagnosis before replacing expensive components.

Everyday Home Use

For the advanced DIY mechanic working on a personal vehicle, this tool offers a way to investigate symptoms like poor fuel economy, rough idling, or misfires that may be linked to injector problems. By performing a measured oil return test, the user can either confirm an injector fault or rule it out, directing further troubleshooting efforts more effectively. It turns a diagnostic guess into a measured assessment.

Benefits and Buying Value

The value of this tool lies in its specific function and the practical advantages it offers in diagnostic clarity.

Reuse and Low Maintenance

As a mechanical measuring instrument constructed from brass and robust plastic, it is designed for repeated use across different vehicles and projects. Proper care and cleaning after use with fuel should allow it to function accurately for many tests. Its value is realised over time, as it becomes a reusable asset for diagnosing fuel systems instead of a single-use item, potentially saving on diagnostic fees or unnecessary part replacements.

Why Choose This Product

This fuel injection flow meter is chosen for its focused purpose: providing a direct, mechanical means to measure a specific injector performance metric. It fills a niche between basic code readers and fully automated professional test benches. For anyone needing to check injector oil return rates, it offers a dedicated tool with the appropriate brass and plastic construction to handle fuel, and its defined 37.5cm x 27.5cm x 7.5cm size indicates a substantial, purpose-built instrument.
