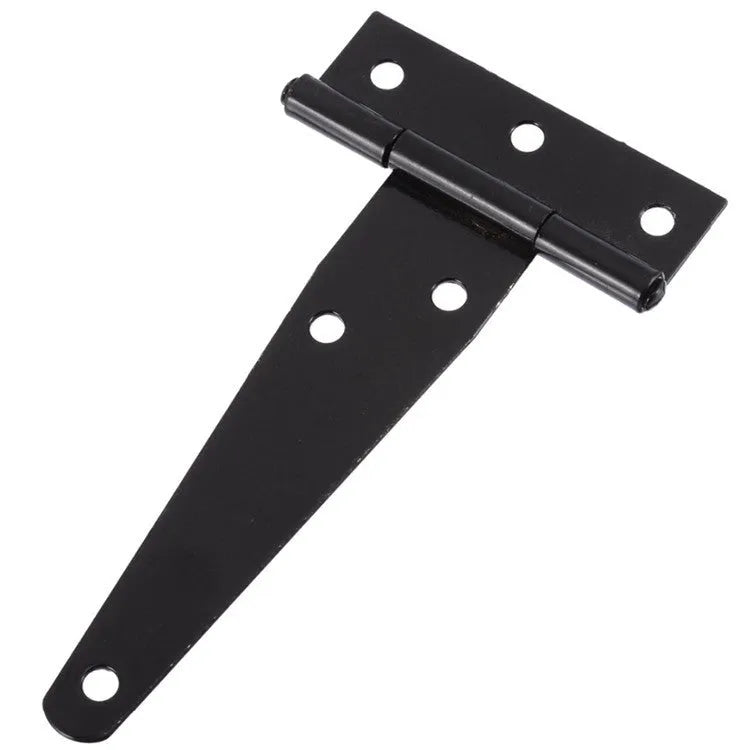

Fixed Light T-shaped Hinge for Outdoor Villa Wooden Courtyard Fence Doors: Iron Construction with 175° Opening Angle

This fixed light T-shaped hinge provides reliable operation for wooden courtyard fence doors with specific technical specifications. The iron construction offers structural support with thickness ranging from 1.2-1.8mm depending on selected size. Available in six distinct options from 4 inches to 12 inches, the hinge features a straight arm card type design that ensures consistent movement without binding. The 175° maximum opening angle allows doors to swing nearly flat against adjacent surfaces, while the one-stage hinge mechanism provides controlled closing action.

Features and Construction Quality

The hinge incorporates several specific design elements that contribute to its performance in wooden door applications. Each component has been selected and manufactured to provide reliable operation in outdoor villa and courtyard settings where consistent door movement is essential.

Iron Material Construction

Constructed entirely from iron, the hinge provides structural integrity for wooden doors. The material thickness ranges from 1.2mm to 1.8mm depending on the selected size, with larger sizes typically featuring greater thickness for increased load-bearing capacity. This iron construction resists deformation under typical wooden door weights while maintaining smooth pivot action through the 175° operating range.

Size Specifications and Options

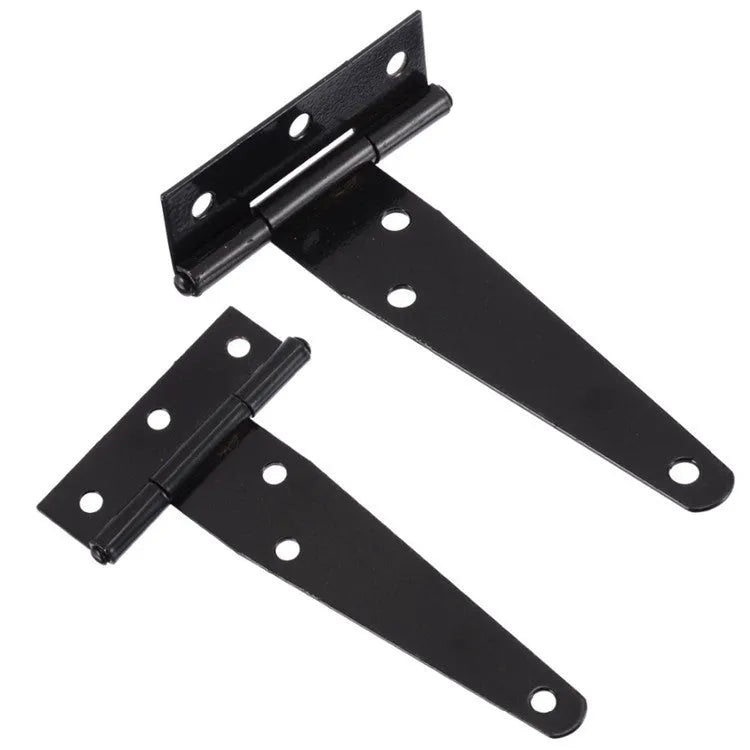

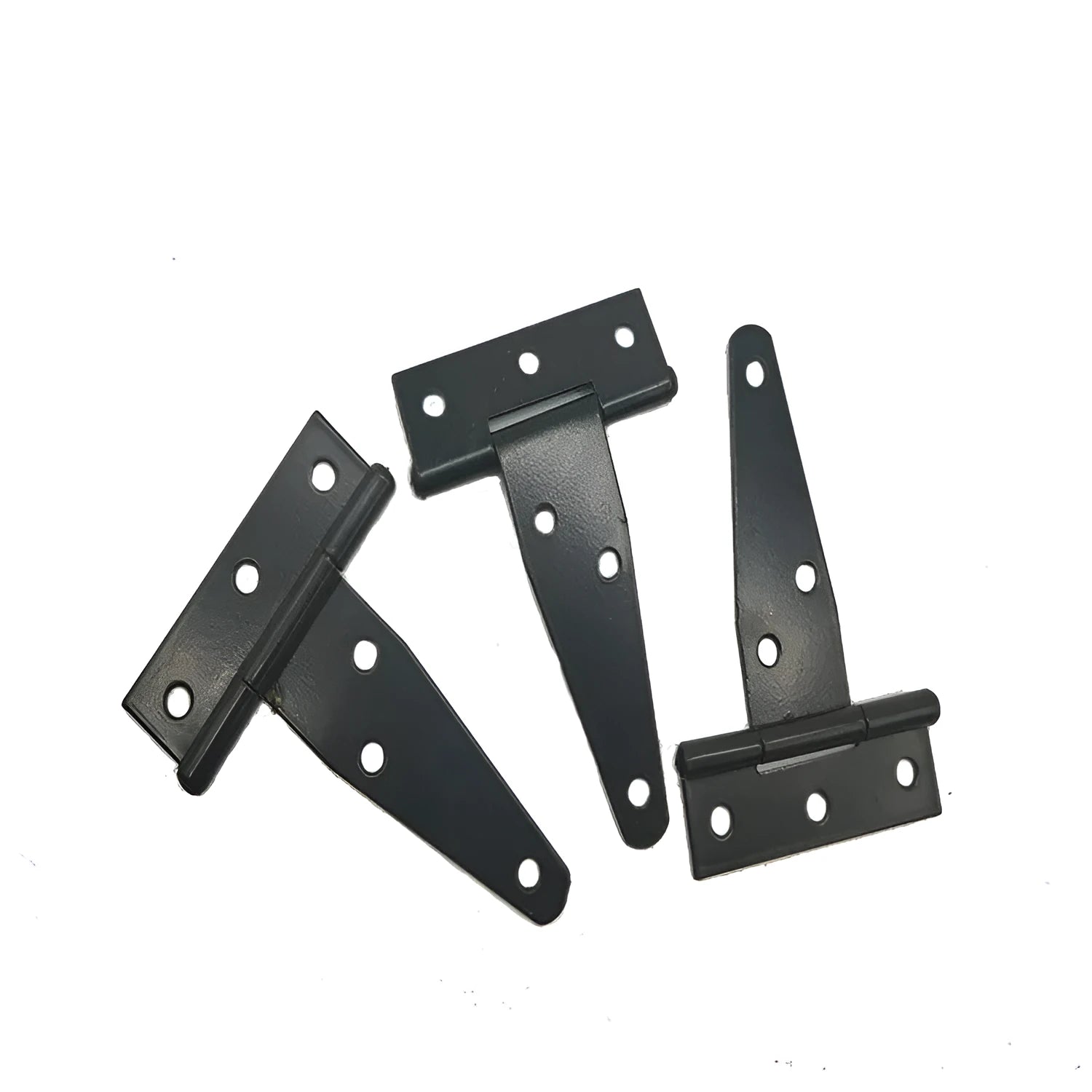

Available in six distinct size options: 4 inches, 5 inches, 6 inches, 8 inches, 10 inches, and 12 inches. These measurements refer to the overall dimensions of the hinge components. The size selection allows matching hinge proportions to door dimensions and weight requirements, with larger sizes providing greater surface area for mounting and increased structural support for heavier wooden doors.

Mechanical Operation Design

The hinge incorporates a one-stage mechanism that provides controlled door closing action throughout the 175° operating range. The straight arm card type design maintains consistent alignment between door and frame during operation, preventing binding or uneven movement. The fixed base installation method creates stable mounting points that distribute operational stresses evenly across the hinge structure.

Applications and Usage Scenarios

This T-shaped hinge has been designed specifically for wooden door applications in outdoor settings. Its construction and specifications make it suitable for various villa and courtyard installations where reliable door operation is required.

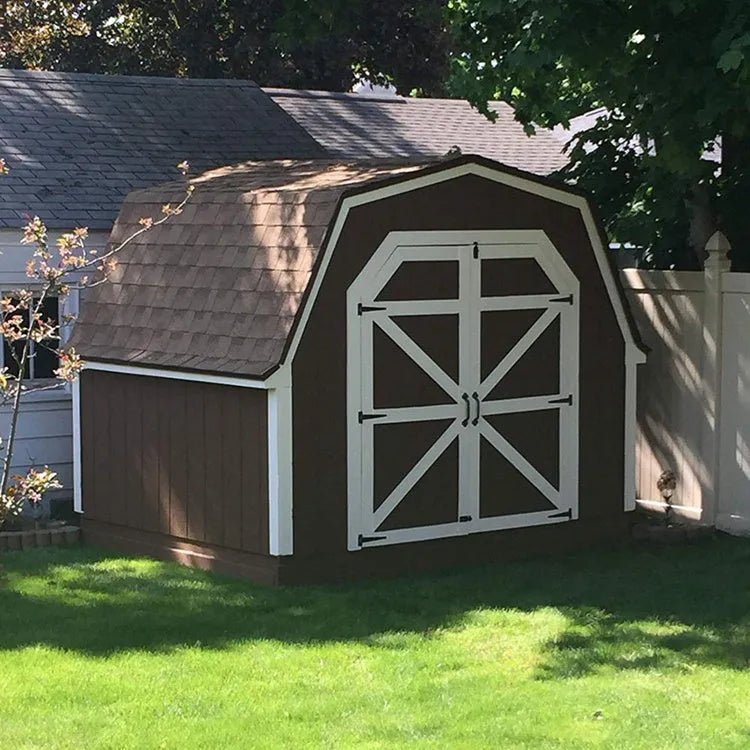

Outdoor Villa Installations

For outdoor villa applications, the hinge's iron construction provides corrosion resistance appropriate for exterior use. The 175° opening angle allows courtyard fence doors to swing nearly flat against walls or adjacent structures, maximising usable space when doors are open. The straight arm design ensures consistent operation even with seasonal wood expansion and contraction that can affect door alignment.

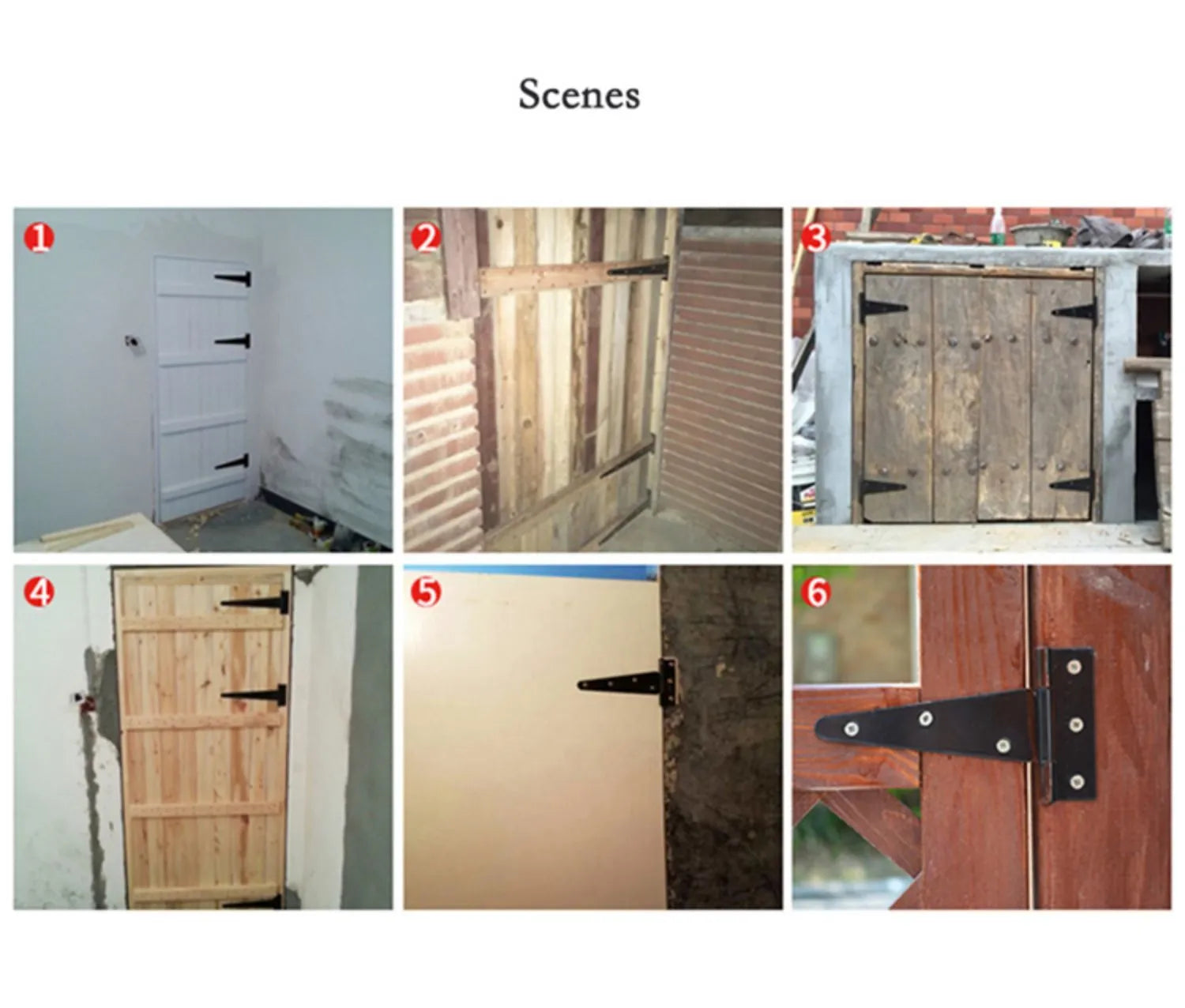

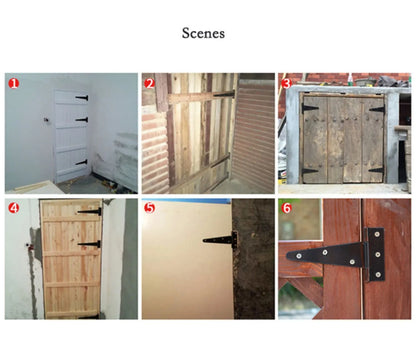

Wooden Courtyard Fence Doors

When used with wooden courtyard fence doors, the hinge's thickness range of 1.2-1.8mm provides appropriate structural support for typical door weights. The smooth pivot action, resulting from the card type design, allows doors to operate with minimal effort while maintaining secure closure. The built-in installation method creates a clean appearance that complements wooden door aesthetics without protruding cover plates.

Versatile Size Applications

With six available sizes from 4 inches to 12 inches, the hinge accommodates various door dimensions and weight requirements. Smaller 4-6 inch sizes work well with lighter wooden gates or interior courtyard doors, while larger 8-12 inch options provide the structural capacity for heavier main entrance doors. This size range allows matching hinge proportions to specific architectural requirements.

Benefits and Performance Advantages

The hinge offers several measurable benefits derived from its specific construction and design features. These advantages contribute to reliable performance in wooden door applications over extended periods.

Long-Term Value PropositionUser Experience and Satisfaction

Users benefit from the smooth 175° door operation that the hinge provides, with the straight arm design ensuring consistent movement without binding. The confidence in reliable operation comes from the specific iron thickness specifications and mechanical design that prevent common hinge failures. The built-in installation creates a clean appearance that satisfies aesthetic considerations while providing functional performance.

Installation and Performance Benefits
