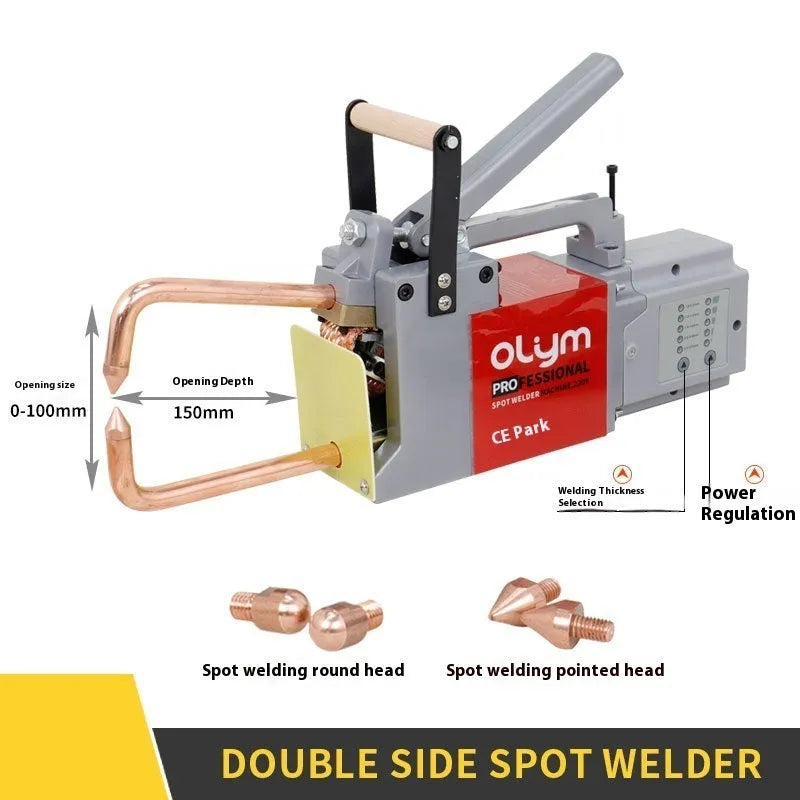

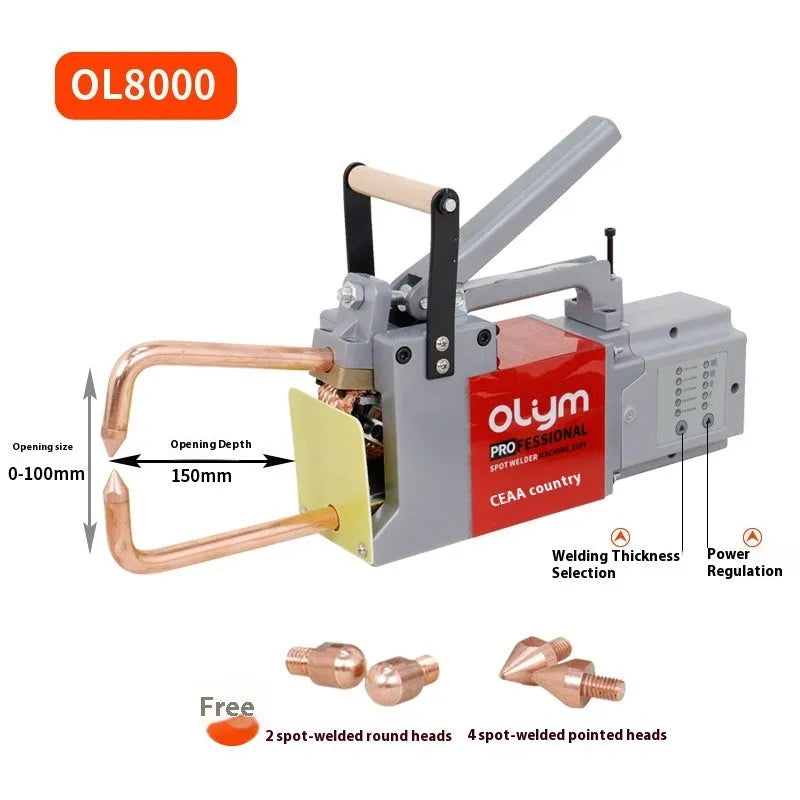

OL8000 Double-Sided Spot Welder: Manual Pulse Control for Consistent 220V Welding

This OL8000 double-sided spot welding machine provides a solution for workshops needing reliable, repeatable joins on sheet metal and electrical components. Its core advantage lies in the manual pulse control, which gives the operator direct command over weld timing to prevent overheating thin materials like 0.2mm nickel strip or 0.8mm mild steel. The dual-sided action ensures force is applied evenly, reducing the tendency for the workpiece to warp and creating a stronger nugget at the joint interface. With a 220V AC input, it integrates into standard industrial sockets, and the inclusion of both round and pointed welding heads covers a broad range of applications from battery pack assembly to automotive panel repair.

Features and Build Quality of the Spot Welder

The construction of this welder focuses on durability and consistent electrical performance. Each component, from the copper alloy arms to the laminated transformer core, is selected to handle the high currents and mechanical stresses of repeated spot welding cycles. This section details the specific materials and engineering choices that contribute to its operational reliability and long service life in a busy workshop environment.

Electrode Arm Design and Reach

The welding arms are made from forged chromium copper, a material chosen for its excellent balance of electrical conductivity and mechanical strength. Each arm has a reach of 400mm from the machine's body, providing a generous throat depth of 250mm to accommodate larger or awkwardly shaped workpieces. The arms pivot on self-lubricating bronze bushings, requiring minimal maintenance while ensuring smooth, consistent movement for thousands of cycles. The tip holders use a standard taper fit, allowing for quick changes and secure grip on the included welding heads.

Transformer and Electrical Specifications

Power is supplied by a 10kVA, oil-cooled transformer with a silicon steel core. It converts the 220V input to a low-voltage, high-current output, capable of delivering up to 8000A in short circuit for penetrating materials up to 2mm+2mm in thickness. The pulse control circuit uses a solid-state relay with a heat sink, rated for over 500,000 cycles. This setup allows for weld times adjustable from 0.1 to 2.0 seconds in 0.05-second increments, giving fine control over heat input to match material conductivity and thickness precisely.

Frame Construction and Safety FeaturesPractical Applications for the Welder

This machine's versatility stems from its dual-sided design and interchangeable heads. It is not limited to a single industry but finds use anywhere small, strong resistance welds are needed without the bulk of arc welding equipment. The following scenarios illustrate its practical value in both professional fabrication and technical hobbyist projects.

Professional Battery Pack Assembly

In the manufacture and repair of lithium-ion battery packs, consistent spot welds on nickel or aluminium tabs are critical for safety and performance. The pointed welding heads concentrate current on a 4mm diameter area, creating a secure bond to the cell terminal without excessive heat that can damage internal chemistry. The pulse control allows operators to set a duration, for example, 0.15 seconds, that reliably joins 0.15mm pure nickel strip, a common spec for power tool batteries, ensuring low-resistance connections that minimise voltage drop under high discharge loads.

Everyday Sheet Metal FabricationVersatility in Repair and Prototyping

Beyond standard joins, the welder is useful for attaching brackets, hinges, or mounting points to existing metal structures where drilling and bolting are impractical. It can join dissimilar thicknesses, like a 1.5mm bracket to a 0.8mm panel, by adjusting the pressure and pulse time to favour heat generation in the thicker material. For prototyping, it allows for fast, reversible assembly of mock-ups using temporary tack welds that can be easily broken for adjustment, a process far quicker than setting up a MIG welder for small tasks.

Long-Term Benefits and Value

Investing in a dedicated spot welder like the OL8000 addresses specific limitations of adapted or makeshift welding solutions. The measurable benefits extend beyond the initial weld quality to include operational cost savings, improved workflow efficiency, and enhanced safety over the machine's lifespan.

Cost Efficiency and Electrode LifeOperational Confidence and ConsistencyReasons for Your Workshop Purchase
