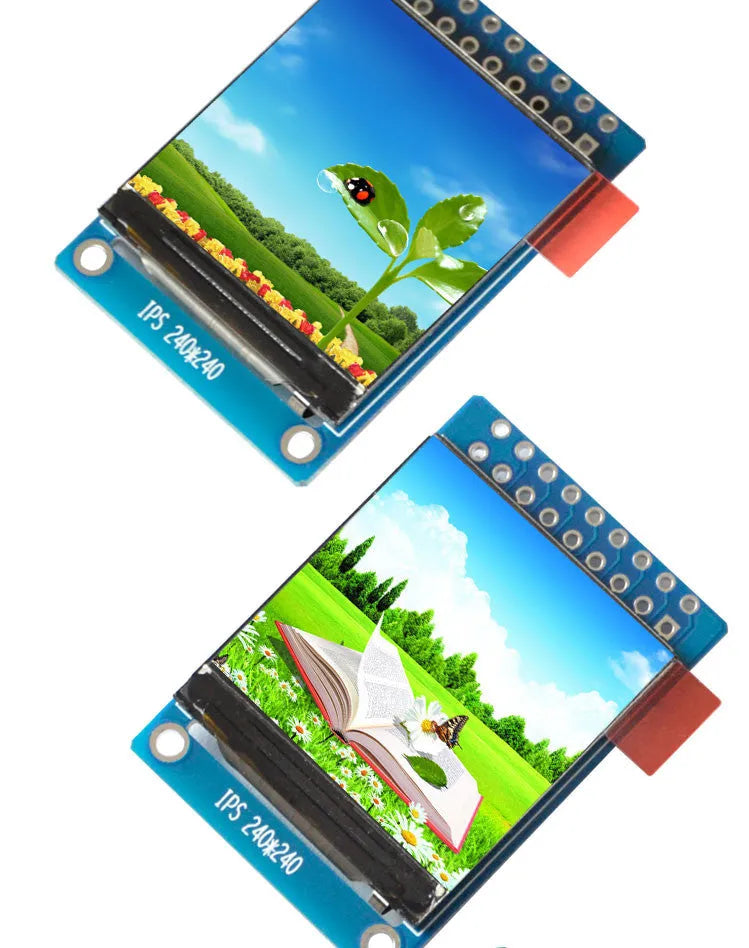

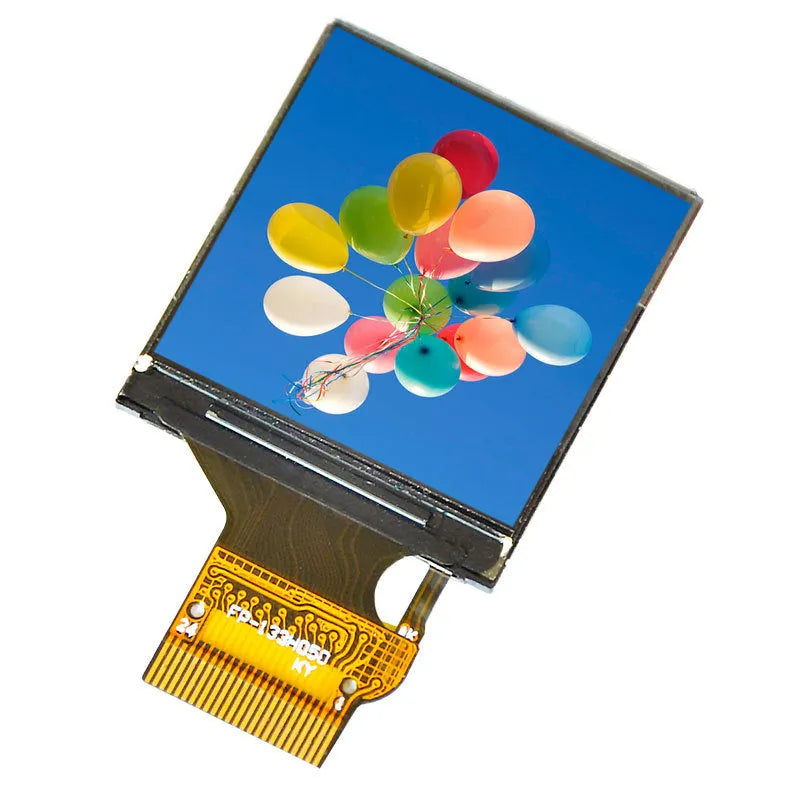

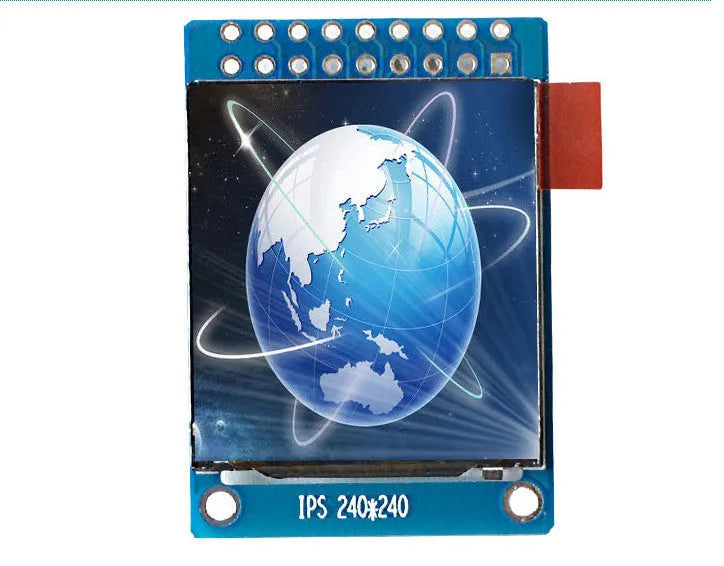

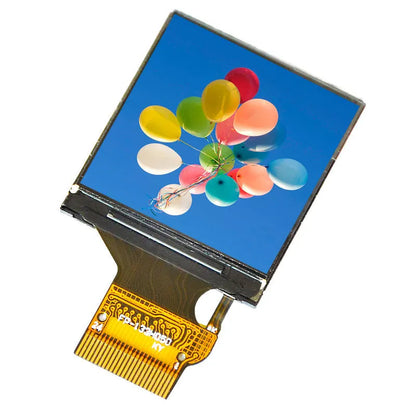

1.3-inch IPS LCD Full Colour Display with 240x240 Resolution and Adjustable Viewing Direction

This 1.3-inch IPS LCD display module delivers a 240x240 resolution on a compact screen, providing clear, detailed visuals for various electronic projects. Its high-definition IPS technology ensures colours appear more vivid than those on standard TFT LCDs, with a wide viewing angle that maintains image quality from different directions. With an operating temperature range of -20 to 70 degrees, it suits applications in changing environments, from indoor devices to outdoor monitors.

Features and Quality of the IPS Display Module

This section covers the specific attributes that define the display's performance and construction. We'll detail the IPS screen technology, resolution specifications, and interface options that contribute to its functionality in diverse settings.

IPS Screen Design and Viewing Angles

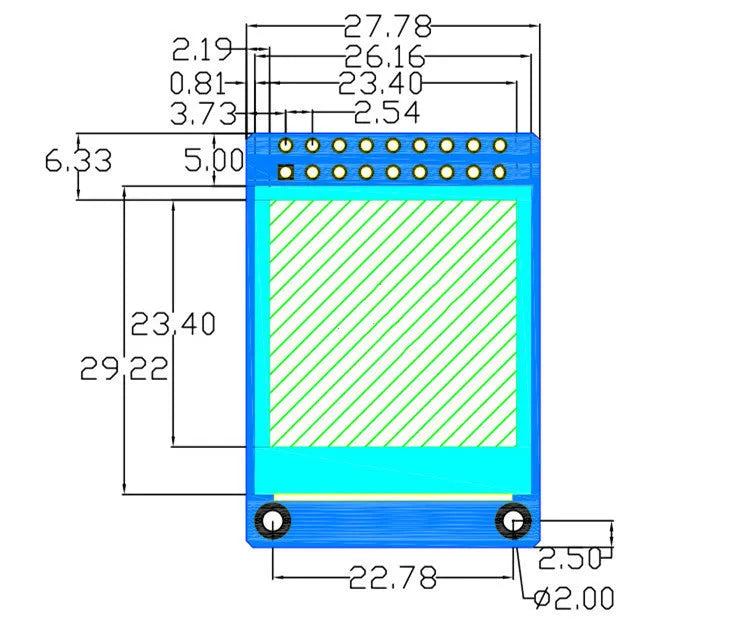

The display uses a high-definition IPS colour screen, which enhances colour reproduction and consistency across wide viewing angles. Measuring 27.78mm by 39.22mm physically, with a display area of 23.4mm by 23.4mm, it offers a square format ideal for symmetrical content. The adjustable display direction allows for full viewing, making it adaptable to different mounting positions without loss of clarity.

Resolution and Display Performance Data

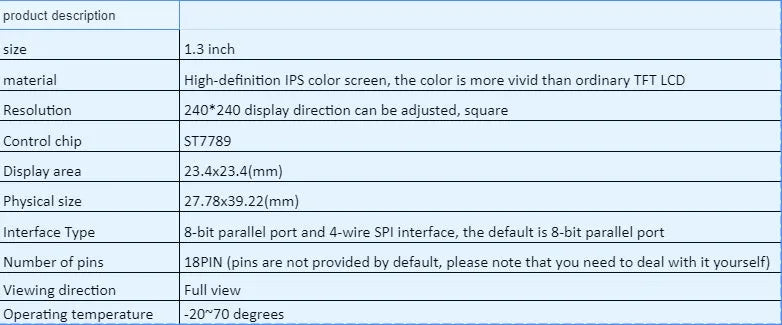

With a resolution of 240x240, this display provides sharp, pixel-dense images suitable for text, graphics, and icons. Controlled by an ST7789 chip, it ensures stable performance and efficient data handling. The square aspect ratio supports balanced visual layouts, while the IPS technology delivers a colour gamut that outperforms basic TFT LCDs in vibrancy and accuracy.

Construction and Durability Details

Built to operate in temperatures from -20 to 70 degrees, the display withstands a range of environmental conditions, from chilly outdoor setups to warm indoor use. The 18-pin interface, though pins are not included, allows for secure connections when properly sourced. This robustness makes it a reliable component in long-term applications, reducing the need for frequent replacements.

Applications for the 1.3-inch Display

This display module fits into various scenarios, from professional electronics to everyday gadgets. Its compact size and versatile interfaces enable integration into projects requiring clear visual feedback without occupying excessive space.

Professional Use in Electronics Projects

In professional settings, such as prototyping or embedded systems, this display serves as a monitor for data readouts, user interfaces, or status indicators. The dual interface support—8-bit parallel port and 4-wire SPI—allows compatibility with different microcontrollers and development boards. Engineers appreciate the adjustable viewing direction for custom installations, ensuring readability in confined or angled setups.

Everyday Use in Consumer Devices

For consumer electronics, like DIY gadgets or home automation displays, the 1.3-inch screen offers a crisp visual interface that feels responsive due to the IPS technology's quick refresh rates. The vivid colours, a result of the high-definition IPS material, make icons and text stand out clearly, enhancing user interaction in devices such as smart mirrors or portable monitors.

Versatility Across Different Setups

This display's versatility extends to alternative uses, such as in wearable tech or compact instruments, where its small footprint and square shape fit neatly into designs. By combining with various enclosures or mounts, it can be styled for aesthetic or functional purposes, supporting both vertical and horizontal orientations without compromising on image quality.

Benefits of Choosing This Display Module

Opting for this display brings measurable advantages in performance and adaptability. We'll explore how its specifications translate into real-world value and user satisfaction across different applications.

Value Through Longevity and Performance

The display's operating temperature range and durable construction contribute to long-term value by minimising failures in harsh conditions. Compared to lower-resolution or TFT-based alternatives, the IPS screen offers better colour retention and viewing angles, potentially reducing replacement costs over time. Its dual interfaces provide flexibility, allowing reuse across multiple projects without needing additional adapters.

Satisfaction from Reliable User Experience

Users gain confidence from the display's consistent performance, supported by the ST7789 control chip that ensures stable operation. The peace of mind comes from knowing the screen maintains clarity across its -20 to 70-degree range, suitable for both indoor and outdoor applications. This reliability enhances overall satisfaction in projects where visual feedback is critical.

Call to Action for Your Next Project

Incorporate this 1.3-inch IPS display into your next build to benefit from its 240x240 resolution and adjustable viewing direction. Its compact size and dual interfaces make integration straightforward, while the vivid IPS colours improve visual appeal. Choose it for a display solution that balances performance with versatility in electronic designs.
