Mini Pro Microcontroller Board: Compact 33.3mm x 18.0mm Platform with 14 Digital I/O Pins for Electronic Prototyping

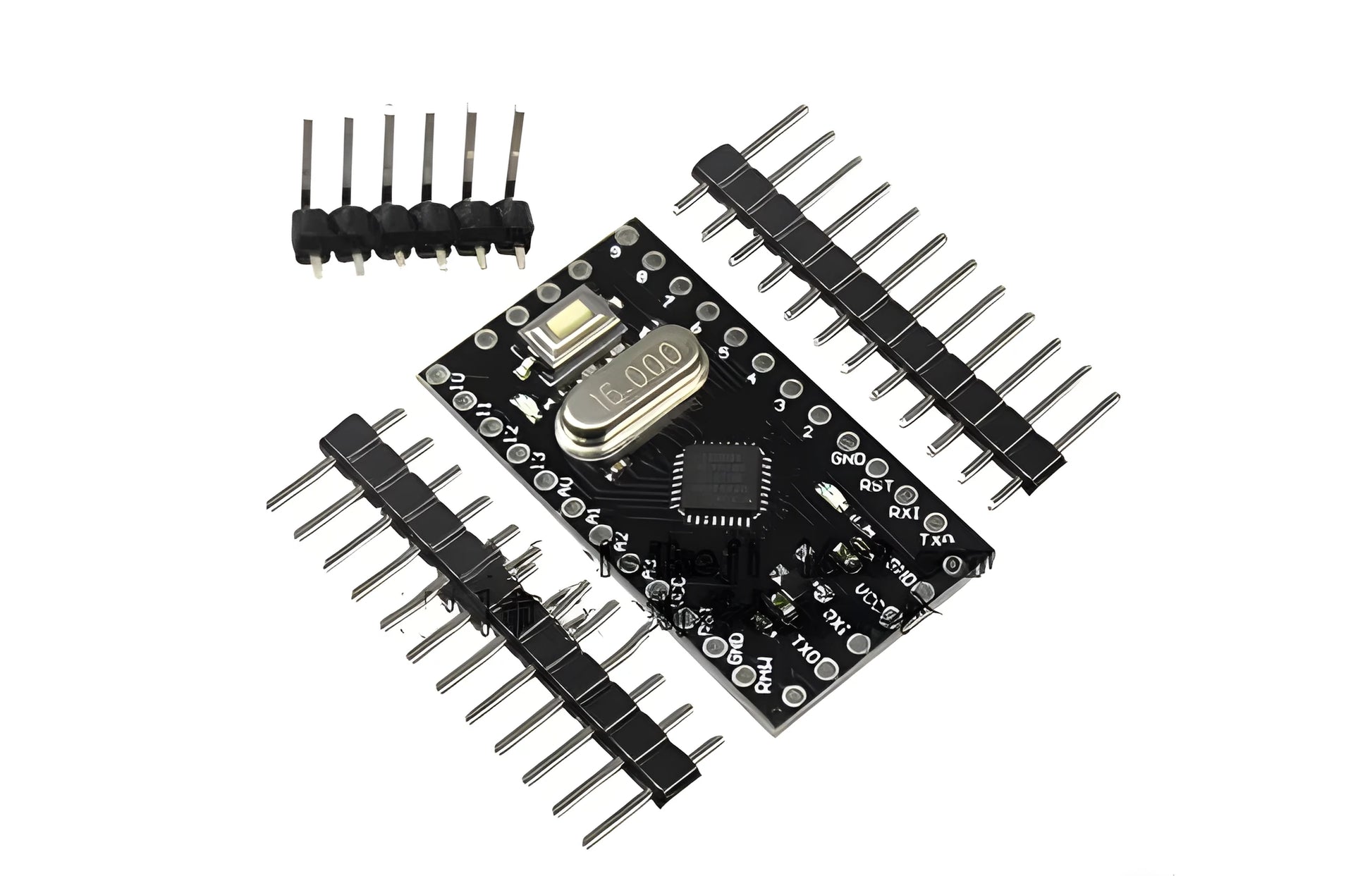

The Mini Pro microcontroller board delivers comprehensive functionality in a space-efficient design measuring just 33.3mm by 18.0mm. Built around the Atmel Atmega328P-AU microcontroller, it provides 14 digital input/output pins for connecting sensors, LEDs, and other components, with 6 of these pins capable of PWM output for controlling motor speed or LED brightness. Eight analog input ports enable precise voltage measurement from various sensors, while the 16MHz resonator ensures accurate timing for time-sensitive applications. This combination makes the board suitable for embedded systems, IoT devices, and educational projects where both capability and compactness are required.

Features and Technical Specifications of the Mini Pro Board

This section details the specific technical parameters that enable the Mini Pro microcontroller board to perform reliably in electronic projects. From its processing capabilities to connectivity options, each feature is designed to support practical prototyping needs without unnecessary complexity.

Digital and Analog Connectivity Design

The board includes 14 digital input/output ports labeled RX, TX, and D2 through D13, providing sufficient interfaces for most prototyping scenarios. Six of these ports (D3, D5, D6, D9, D10, and D11) support PWM output, allowing for variable control of connected devices like motors or LEDs. Eight analog input ports (A0 through A7) accept voltage signals from sensors, with the microcontroller's 10-bit ADC converting these to digital values. This configuration enables projects requiring multiple sensor inputs alongside actuator control, all within the compact 33.3mm x 18.0mm footprint.

Power and Communication Specifications

Power flexibility is provided through support for external DC power supplies ranging from 3.3V to 12V, including specific compatibility with 9V battery power. The board consumes approximately 50mA during normal operation, making it suitable for battery-powered applications. Communication capabilities include a TTL level serial port transceiver with RX/TX pins for UART communication, supporting data rates up to 115200 baud. The 16MHz clock frequency ensures instruction execution at up to 16 MIPS, sufficient for most real-time control applications without excessive power consumption.

Construction and Durability Details

Manufactured using FR-4 fiberglass material, the PCB provides mechanical stability while maintaining electrical insulation between traces. The 1.6mm board thickness offers rigidity without excessive weight, and the 1oz copper layer ensures reliable current carrying capacity. Gold-plated pin headers maintain connection integrity through multiple insertion cycles, and the Atmega328P-AU microcontroller is rated for industrial temperature ranges (-40°C to 85°C). These construction elements contribute to reliable operation in various environmental conditions typical of embedded applications.

Practical Applications for the Mini Pro Microcontroller

The Mini Pro's combination of features supports diverse applications in both professional and educational settings. Its compact size and comprehensive I/O capabilities make it adaptable to numerous electronic projects, from simple demonstrations to complex embedded systems.

Professional Development and Prototyping Uses

In professional environments, the board serves as a development platform for IoT device prototypes, allowing engineers to test sensor networks and communication protocols before final PCB design. The 8 analog inputs enable data acquisition from multiple sensors simultaneously, useful for environmental monitoring systems. PWM outputs control motors in robotics applications, while the compact dimensions facilitate integration into space-constrained enclosures. Serial communication support allows connection to Wi-Fi or Bluetooth modules for wireless functionality in connected devices.

Educational and Hobbyist Projects

For educational purposes, the board introduces students to microcontroller programming with sufficient I/O for comprehensive projects. The tactile reset button provides immediate restart capability during debugging sessions. When programming the board, the responsive feedback from connected components—due to the 16MHz clock ensuring timely execution—helps learners understand real-time system behavior. Projects might include weather stations using multiple analog sensors, motor-controlled robots utilizing PWM outputs, or interactive displays employing digital I/O for user interface elements.

Versatile Integration Possibilities

Beyond standalone use, the Mini Pro can function as a peripheral controller in larger systems, managing specific tasks while communicating with a primary processor. Its small footprint allows mounting directly onto custom PCBs as an embedded component. The board complements Raspberry Pi or other single-board computers by handling real-time I/O operations, offloading timing-critical tasks from the main processor. This versatility extends its utility beyond initial prototyping to permanent installation in finished products where its specific capabilities are required.

Benefits of Choosing the Mini Pro Microcontroller Board

Selecting the Mini Pro provides measurable advantages in electronic development projects, from immediate functionality to long-term reliability. These benefits stem from its specific technical specifications and thoughtful design considerations.

Cost-Effective Development Value

Compared to larger development boards with similar I/O capabilities, the Mini Pro's compact design reduces material costs while maintaining functionality. The ability to use 9V battery power eliminates need for specialized power supplies in many applications. Over a typical development cycle, the board's durability reduces replacement frequency, with the FR-4 substrate and gold-plated contacts maintaining reliability through hundreds of connection cycles. This combination of features provides a lower total cost for prototyping compared to using multiple specialized boards for different functions.

Reliable Performance SatisfactionImmediate Project Readiness

With 14 digital I/O pins and 8 analog inputs available immediately upon connection, the board requires no additional expansion for most prototyping needs. The included mounting holes facilitate secure installation in project enclosures, while serial download support works with standard programming tools. This readiness accelerates development timelines compared to boards requiring additional components for basic functionality. The specific combination of features addresses common prototyping requirements without unnecessary complexity that might delay project completion.
